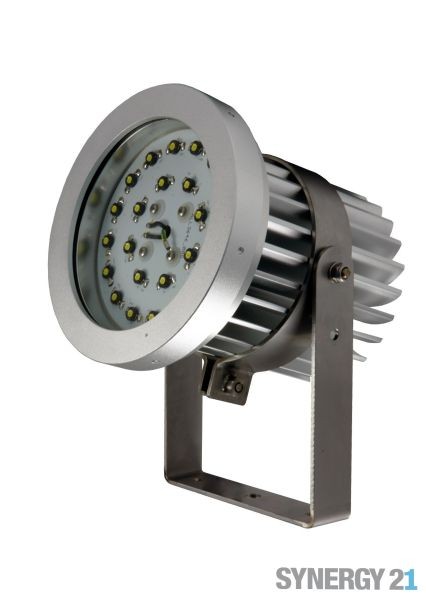

Synergy 21 LED Prometheus IP68 neutral white V2
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 115509
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM00940
- EAN No.: 4038816034168
- weight: 1kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
Outdoor in-ground spotlight incl. bracket for wall and floor mounting
230V
Beam angle: 120°... more
Product information "Synergy 21 LED Prometheus IP68 neutral white V2"
Outdoor in-ground spotlight incl. bracket for wall and floor mounting
230V
Beam angle: 120°
Lumen: 2880lm 120lm/w
Colour temperature: 4300K ±150
Power consumption: 24 Watt
Protection class: IP 68
Colour: Neutral white
Total height: 160mm
Diameter head: 150mm
Heat sink diameter: 120mm
Order power supply unit separately
external constant current power supply: 115517
Energy efficiency class: A
kWh/1000h: 26.4
Produktmerkmale:
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4300 |
| Lumen: | 2880 |
| Schutzklasse: | IP68 |
Related links to "Synergy 21 LED Prometheus IP68 neutral white V2"
Available downloads:
Synergy 21 LED Prometheus IP68 Netzteil V2
Netzteil (Konstantstromquelle) für einfarbige Prometheus V1 und V2
Input: 170-250V, 50/60Hz (Kabellänge 180cm)
Output: 350mA, 40-85V, 28W max (Kabellänge 100cm)
Größe 200x22x19mm
Part no.:
115517
Herst.Art.Nr.: S21-LED-TOM00944
Herst.Art.Nr.: S21-LED-TOM00944
stock:
0
Ready to ship today,
Delivery time appr. 1-3 workdays
Synergy 21 - Wasserdichte Verbinder 1:1
250V/450V
PTI250, T85
IP68 at 5 bar, 24A
Min. Ø5mm,
Max. Ø14mm
Part no.:
148726
Herst.Art.Nr.: S21-COMP-00751
Herst.Art.Nr.: S21-COMP-00751
stock:
0
Ready to ship today,
Delivery time appr. 1-3 workdays
Synergy 21 - Wasserdichte Verbinder 1:2
Hosing: PA66
O-ring: silicone
Conductor material: cooper
Cable range: 13.5mm~17mm
Cable size: 4mm2
Temperature: 85°C
Voltage: 250V
Ingress protection: IP68
Fire classification: 94V0
Part no.:
148727
Herst.Art.Nr.: S21-COMP-00752
Herst.Art.Nr.: S21-COMP-00752
stock:
0
Ready to ship today,
Delivery time appr. 1-3 workdays
Synergy 21 - Wasserdichte Verbinder Box 3 Ports
Box Material: PA66
IP Class: IP66
Sunscreen Rating:Sun Protection(UV)
Terminal Blocks: Housing
Polypropylene 94-V2grade(PA) Metal
Part:Plated Brass/Steel Spring
Screws: SS
Abmessung: B=6,5cm, L=10cm
Part no.:
148730
Herst.Art.Nr.: S21-COMP-00755
Herst.Art.Nr.: S21-COMP-00755
stock:
0
Ready to ship today,
Delivery time appr. 1-3 workdays
Synergy 21 - Waterproof connector box 4 ports
Box material: PA66
IP Class: IP66
Sunscreen Rating:Sun Protection(UV)
Terminal Blocks: Housing
Polypropylene 94-V2grade(PA) Metal
Part:Plated Brass/Steel Spring
Screws: SS
Part no.:
148728
Herst.Art.Nr.: S21-COMP-00753
Herst.Art.Nr.: S21-COMP-00753
stock:
0
Ready to ship today,
Delivery time appr. 1-3 workdays
