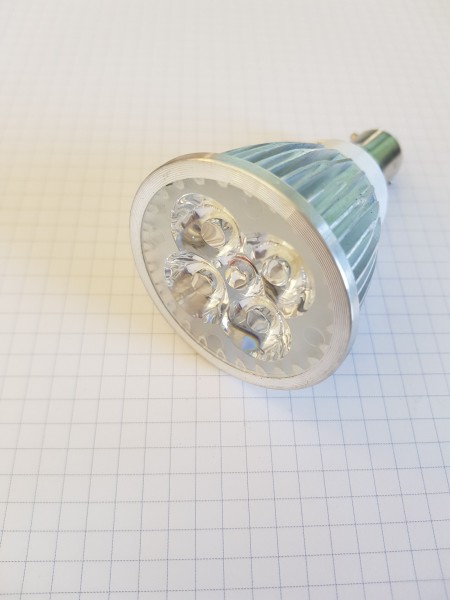

Synergy 21 LED Nachrüstsatz BA15s 4x1W ww
- stock: 0
- part no.: 149922
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM01130
- EAN No.: 4038816072245
- weight: 0.1kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Socket: BA15s
4x1Watt LEDs
ALU housing
Input: 12Vac / 12Vdc,
Input range: 8-14Vac / 8-18Vdc
Power consumption: 4 W
Lumen: 400 lm
Kelvin 3000
Beam angle 60°
Dimmable: yes
DxH: 50mm*60mm
Can be used as a replacement for conventional halogen mirror lamps.
Colour: Warm white
Caution:
Please only use regulated or switching power supply units with the Synergy 21 LED GX5.3/MR16 spots.
Do NOT use halogen transformers or wound power supply units, otherwise there is a risk of the LED being destroyed by overvoltage.
Please be sure to measure the voltage beforehand.
We recommend using the Synergy 21 DM830 digital multimeter to measure the voltage.
Please note that Synergy21 LED retrofit lamps may only be operated at an operating temperature between 0-50 C°.
The service life of the LEDs cannot be guaranteed in the event of deviations!
Energy efficiency class: A++
kWh/1000h: 4
Produktmerkmale:
| Abstrahlwinkel: | 60 |
| CRI: | 80 |
| Dimmbar: | ja |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 400 |
| Sockel: | BA15s |
| Volt: | 12 |
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 4,00 |
| Lumen: | 440 |
| Watt: | 4,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
