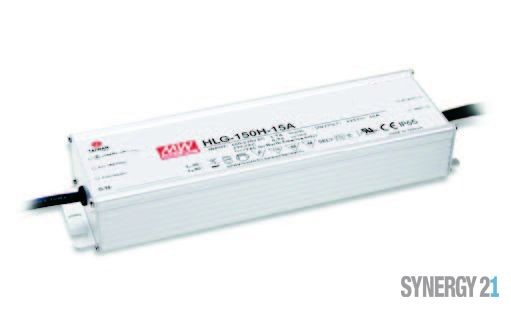

Synergy 21 Power supply - 36V 150W Mean Well 0-10V dimm IP65
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 123636
- vendor: Meanwell
- mnufacturer no.: HLG-150H-36B
- weight: 0.5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
HLG-150H-36B
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90-305VAC
Output: 4.2A, 36V DC ,... more
Product information "Synergy 21 Power supply - 36V 150W Mean Well 0-10V dimm IP65"
HLG-150H-36B
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90-305VAC
Output: 4.2A, 36V DC , 151.2 Watt
Operating temperature: -40°C to +70°C
LxWxH 228x68x38.8mm
Protection markings: See meanwell.com
Open cable ends
Produktmerkmale:
| Ampere: | 1 |
| Betriebstemperatur: | -40 bis +70 |
| CC oder CV: | CV |
| Dimmbar: | ja |
| Grösse: | 228*68*38,8 |
| Schutzklasse: | IP65 |
| Volt: | 36 |
| Watt: | 36 |
