Synergy 21 LED Flex Strip 120 NW DC24V 48W IP20
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 100869
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00025
- EAN No.: 4038816987082
- weight: 0.126kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet ES
EU RoHS und REACH Erklärung

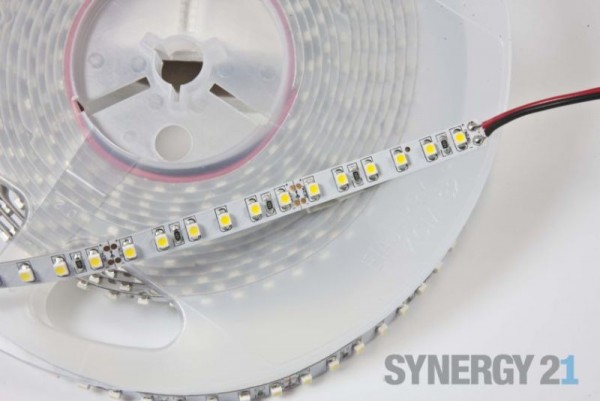

LED Flex Strip neutral white,
DC24V, max. 2A, 48W ± 10%,
600Leds, 120°, 3528SMD
Lumen: 3600... more
Product information "Synergy 21 LED Flex Strip 120 NW DC24V 48W IP20"
LED Flex Strip neutral white,
DC24V, max. 2A, 48W ± 10%,
600Leds, 120°, 3528SMD
Lumen: 3600
4100-4400K
CRI: >80
Length: 5000*8*2.5mm
Adhesive tape for mounting aid on the back
indoor
Can be shortened every 6 LEDs
Strip can be shortened at marking points with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split strip when no current is present.
Energy efficiency class: A+
kWh/1000h: 48
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Höhe: | 2.50 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4250 |
| Lumen: | 3600 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 48 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 48,00 |
| Lumen: | 3600 |
| Watt: | 48,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
