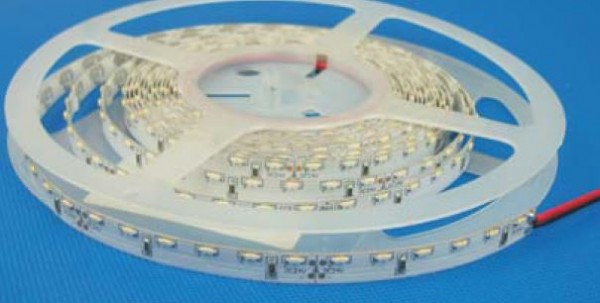

Synergy 21 LED Flex Strip 4020 - 60 NW DC24V 38W IP65 CRI>90 sideview
- stock: 0
- part no.: 165325
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00190
- EAN No.: 4038816084958
- weight: 0.4kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
Synergy 21 LED Flex Strip
Length: 5m
Voltage: 24V,
Wattage: 7.6W/m, 38W
Light colour: neutral white, 4200K, CRI>90
Luminous flux: 688lm/m, total: 3440lm
Beam angle: 120°
Protection rating: IP65
Number of LEDs: 60 SMD/m, total: 300 LEDs
Dimensions: 5000 × 10 × 3 mm
PCB colour: white, exposed cable ends: red and black (350 ± 5 mm)
Operating temperature: -25°C to +50°C
Can be cut every 6 LEDs at 6.25 cm intervals
Adhesive tape: yes, 3M on the back
Energy efficiency class: G
The strip can be cut at the cutting marks using sharp scissors.
!Warning! The strip must first be checked to ensure it is in working order.
Only cut the strip when the power is off.
Our 3M adhesive tape adheres well, but should still only be regarded as an aid to installation.
There are a variety of mounting options available, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Ensure that the LED strip does not exceed an operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No warranty can be provided for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1,50 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 12 |
| LED Strip Chip Anzahl: | 60 |
| LED Strip Chip Merkmal: | sideview |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 62.50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4200 |
| Lumen: | 3440 |
| Schutzklasse: | IP65 |
| Volt: | 24 |
| Watt: | 38 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 38 |
| Lumen: | 3440 |
| Watt: | 38 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
