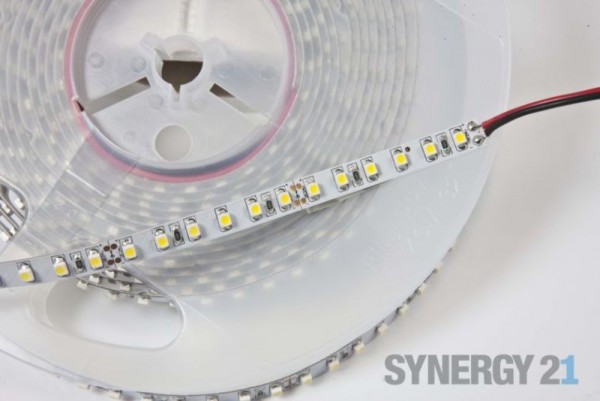

Synergy 21 LED flex strip 60 NW DC24V 24W IP20 CRI>90

Preview: Synergy 21 LED flex strip 60 NW DC24V 24W IP20 CRI>90

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

data sheet DE

data sheet EN

EU RoHS und REACH Erklärung

stock: 0
part no.: 178734
vendor: Synergy 21 LED
mnufacturer no.: S21-LED-F00211
EAN No.: 4038816094209
weight: 0.5kg
warranty: 24 months
Do you have any questions concerning this product?

Voltage: 24V, max.1A Watt: 24W±10% Light colour: neutral white, 4000K Brightness: 2160lm... more

Close menu

Product information "Synergy 21 LED flex strip 60 NW DC24V 24W IP20 CRI>90"

Voltage: 24V, max.1A
Watt: 24W±10%
Light colour: neutral white, 4000K
Brightness: 2160lm
CRI>90
Beam angle: 120°
Protection class: IP20
Number of LEDs: 300*3528SMD
Dimensions: 5000*8*3 mm
PCB colour: white, open cable end
Operating temperature: -25°C to +40°C
Weight: 0.090 kg
Can be shortened every 6 LEDs
Adhesive tape: yes 3M on the back

Energy efficiency class: A
kWh/1000h: 24

Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.

Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.

Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips

Produktmerkmale:

Abstrahlwinkel:	120
Ampere:	1
CC oder CV:	CV
CRI:	>90
Dimmbar:	abhängig vom Netzteil
LED Strip Klebeband:	ja
LED Strip Breite:	8
LED Strip Höhe:	3
LED Strip Länge:	5000
LED Strip kürzbar:	100
Lichtfarbe:	neutralweiss
Lichtfarbe in Kelvin:	4000
Lumen:	2160
Schutzklasse:	IP20
Volt:	24
Watt:	24
