ALLDAQ ADQ-USB 3.0-ISO / USB 3.0 SuperSpeed-Isolator bis 1kV

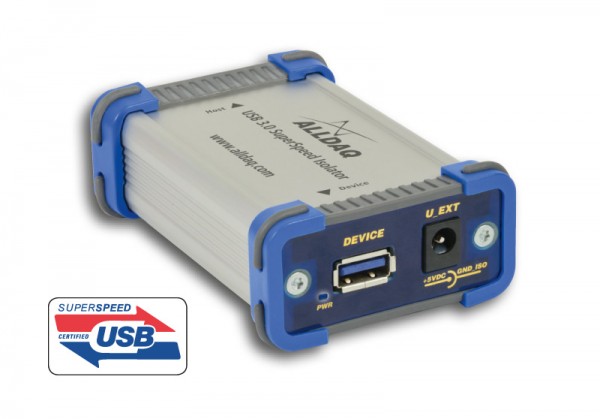

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology

Application examples

• Potential isolation between measuring devices and PC
• Effective suppression of ground loops - ideal for music studios and event technology
• Protection against voltage peaks in the automotive sector, e.g. when testing control units
• Decoupling different earth potentials in industrial control technology
• Can also be used as a power injector for USB devices that are normally supplied via the USB port, but this does not provide sufficient power for reliable operation of the USB device^**

Features

• Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbps
• Re-clocking technology for all speeds
• Backward compatible with USB 2.0/1.1/1.0^***
• Isolation voltage (data and supply)^*: up to 1?kV permanently!
• Maximum current for USB 3.0 devices:
  • Without external power supply: max. 200?mA
  • With external power supply: max. 900?mA
• USB connection:
  • Host: USB 3.0 type B socket
  • Device: USB 3.0 type A socket
• Operating temperature: -20°C..+70°C
• Relative humidity: max. 95%
• Robust aluminium housing with rubber bumper
• Dimensions (L x W x H): 90 mm x 62 mm x 32 mm
• Operating system support: Windows, MAC OS and Linux
• Optional mounting kit for DIN rail

Scope of delivery

• USB 3.0 SuperSpeed isolator
• USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5 m
• Quick guide printed

Safety note:

This model is not approved for medical applications.

    ^*ADQ-USB 3.0-ISO(-PS): 1?kVDC (continuous) / 1.5 kVAC <60 Hz (60s), ADQ-USB 3.0-ISO-W: 1.6?kVDC (60?s). Higher insulation voltage on request.
  ^**ADQ-USB 3.0-ISO-PS: 5?V plug-in power supply included. ADQ-USB 3.0-ISO-W: External power supply must be provided.
^***When connected to a USB 2.0 host (upstream), no USB 3.0 devices are accepted on the device side (downstream). The cascading of multiple USB isolators is not supported.
