ALLDAQ ADQ-USB 3.0-ISO-W / USB 3.0 SuperSpeed-Isolator bis 1kV, ext. Supply: 10..36VDC

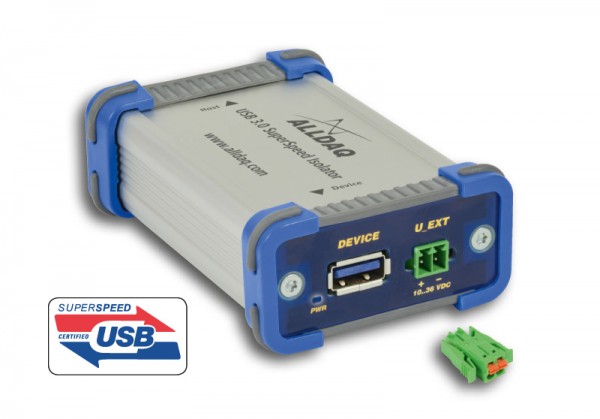

USB 3.0 SuperSpeed isolator for galvanic isolation - ideal for measurement technology, industry, automotive and audio technology

Variant of the ADQ-USB 3.0-ISO with wide-range input from 10V to 36V to supply the USB device. Ideal for mobile use in cars or lorries, in industrial control environments and wherever there is no 5V supply available.

Application examples

• Potential separation between measuring devices and PC
• Effective suppression of ground loops - ideal for music studios and event technology
• Protection against voltage peaks in the automotive sector, e.g. when testing control units
• Decoupling different earth potentials in industrial control technology
• Can also be used as a power injector for USB devices that are normally supplied via the USB port, but this does not provide sufficient power for reliable operation of the USB device^**

Features

• Latest isolator technology supports SuperSpeed USB 3.0 devices up to 5 Gbit/s
• Re-clocking technology for all speeds
• Backwards compatible with USB 2.0/1.1/1.0^***
• Isolation voltage^*: 1.6 kVDC (60 s)
• Maximum current for USB 3.0 devices: max. 900 mA (with external supply)
• USB connection:
  • Host: USB 3.0 type B socket
  • Device: USB 3.0 type A socket
• Operating temperature: -20°C..+70°C
• Relative humidity: max. 95%
• Robust aluminium housing with rubber bumper
• Dimensions (L x W x H): 90 mm x 62 mm x 32 mm
• Operating system support: Windows, MAC OS and Linux
• Optional mounting kit for DIN rail

Scope of delivery

• USB 3.0 SuperSpeed isolator
• 2-pin mating connector with locking mechanism
• USB 3.0 cable (USB 3.0-A plug to USB 3.0-B plug), length: 1.5m
• Quick guide printed

Safety note:

This model is not approved for medical applications.

^*ADQ-USB 3.0-ISO(-PS): 1 kVDC (continuous) / 1.5kVAC <60Hz (60s), ADQ-USB 3.0-ISO-W: 1.6 kVDC (60 s). Higher insulation voltage on request.
^**ADQ-USB 3.0-ISO-PS: 5 V plug-in power supply included in the scope of delivery. ADQ-USB 3.0-ISO-W: External power supply must be provided.
^***When connected to a USB2.0 host (upstream), no USB3.0 devices are accepted on the device side (downstream). The cascading of multiple USB isolators is not supported.
