ALLNET media converter 10BASE-T/10BASE2 to BNC "ALL0500v3" DC 12VDC
- stock: 0
- part no.: 230640
- vendor: ALLNET
- mnufacturer no.: ALL0500v3
- weight: 0.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung

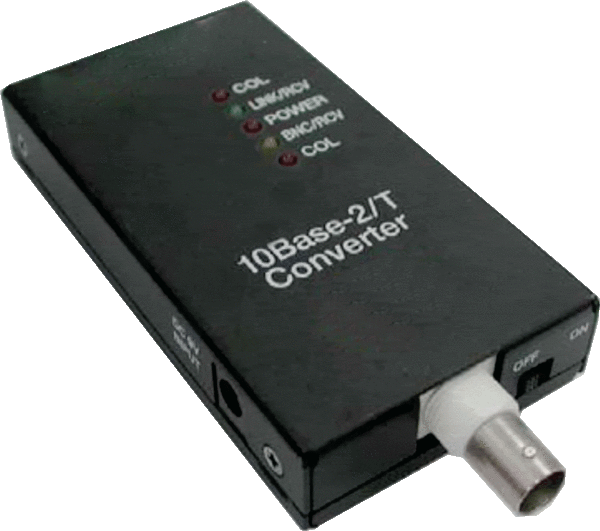

The ALL0500v3 Converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thinet Coax BNC Ethernet Network to a 10Base-T UTP network. The ALL0500v3 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.
Ports:
1xRJ-45 from (Hub/station)
1xBNC socket to 10 Base-2
Cable lenghts:
100 M max. per UTP cables
185 M max. per Thin Ethernet
Power supply:
Input 110V or 220V AC
Output 12V DC, 1 Amp
Environmental:
Temperature: 0 to 55C (standard operating)
Humidity: 10 to 90% (non-condensing)
Standards
10 to 90% (non-condensing)
Meets FCC Class A Subpart B of Part 15 Requirement
IEEE 802.3 10Base-T/10Base-2
Star CSMA/CD
Topology
Baseband Twisted Pair expand upon to 4 level Thinnet up to 30 Hubs
Dimensions: 0.79″ (H) x 2.17″ (W) x 4.09″ (D)
CE and FCC Certification
Produktmerkmale:
| Features: | BNC |
| Geschwindigkeit: | 10M |
