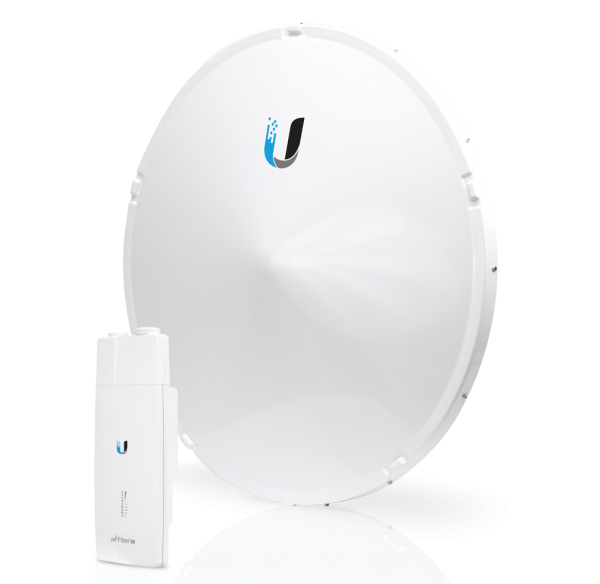

Ubiquiti AirFiber, 11GHz AF11-Complete-HB
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 183592
- vendor: Ubiquiti
- mnufacturer no.: AF11-Complete-HB
- EAN No.: 817882027021
- weight: 3.8kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free... more
Product information "Ubiquiti AirFiber, 11GHz AF11-Complete-HB"
Modular airFiber radio system built for the 11 GHz licensed frequency market that breaks free from the 5 GHz band.
High-band point-to-point radio with dish antenna
11 GHz, 300+ km link range
1.2+ Gbps throughput
Distinct RX and TX frequencies
Technical Specifications
| airFiber AF-11 | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
| Weight | 2.26 kg (5 lb) |
| Mounting | AF-11G35 mount compatible |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) DC Power Block |
| Power supply | 50V DC, 1.2A PoE Gigabit Adapter (Included) |
| Supported voltage range | 38-56V DC |
| RF connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | SISO/MIMO* * Comes with (1) High-Band Duplexer pre-installed for SISO mode. For MIMO mode, a second Duplexer is available, model AF-11-DUP-H. |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range | 300+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency* | 10.7-11.7 GHz *Depends on regional regulations. |
| Max. conducted TX power* | 30 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 1 ppm |
| Channel bandwidth* | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable** Programmable Uplink and Downlink duty cycles * For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber **Channel widths may vary according to country/region regulations. |
| airFiber AF-11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1") |
| Weight | Without mount: 7.14 kg (15.74 lb) With mount: 11.85 kg (26.12 lb) |
| Wind loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mount |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL beamwidth | 2.5° |
| VPOL beamwidth | 2.5° |
| Maximum VSWR | 2:1 |
| Polarization | Default: H/V After rotating OMT: ± 45° |
| Cross-pol isolation | 35 dB |
| Pattern regulatory | ETSI 302 217-4-2, Class 3, FCC Cat B |
