ALLNET ALL16881 / Powerline Phasenkoppler/Signalbrücke 3 Pha
- stock: 0
- part no.: 112411
- vendor: ALLNET
- mnufacturer no.: ALL16881PC
- EAN No.: 4038816112415
- weight: 0.005kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung

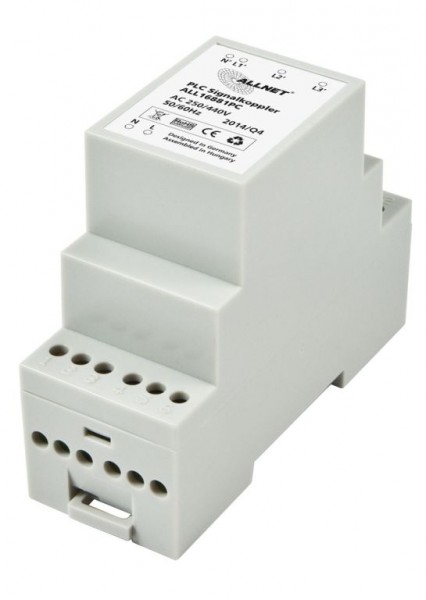

Powerline Phase Coupler for Power Line networks for installation in the fuse box (DIN-Rail)
Highlights:
ALL16881PC AC 250 / 440 V 50/60Hz
Multiple Phases
phase coupler for multiple Phases "Coupling to other
PLC networks"
DIN-Rail installation
Frequency range 1-70 MHz
Suitable for PLC Signal coupling over circuit breaker
and multiple electric meters
CE-proved
Combines all phases of the home power network with each other and makes the Powerline signal to electrical power sockets in a circuit available. About the fourth LX-phase cross-connections can be implemented to other circuits when electricity meter, earth leakage (GFCI), circuit breakers and similar obstacles for power line communications must be overcome.
Circuit diagram for electrician: See manual for more details. 2 application examples are listed in the manual. For further application examples please contact our support support@allnet.de.
Technical Details:
|
Frequency Range: |
0-70Mhz |
|
Nominal Voltage: |
AC 250/440V 4x22nFX2, 3 phase |
|
Temperature Range: |
-25°C - 100°C |
|
Installation width: |
34mm |
|
Installation depth: |
70mm max. |
|
Mounting: |
DIN rail mounting |
|
Mark: |
CE |
