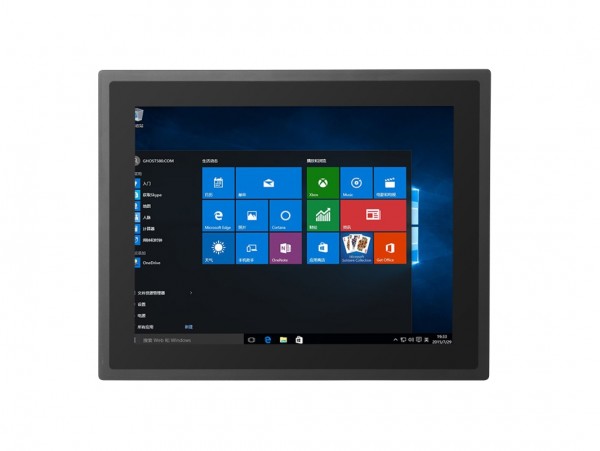

ALLNET AIO PC industrial Windows 10, 15,0 Zoll Touch, Intel Intel® WHISKEYLKE CORE ? i3 8145U processor, 8GB/128GB, Wlan, RJ45, USB, SIM, Wandmontage

Display Display

Screen

15,0″ LCD

Resolution

1024x768

Brightness

350 cd/m2

Contrast

1000:01

Touch Screen

Multi-Point Capacitive touch

Performance

Chipset

Intel® WHISKEYLAKE CORE ™ i3 8145U

RAM

Board 8GB LPDDR4 memory

Hardware Monitor

Monitors voltage, CPU, TEMP

Watchdog Timer

Support hardware reset function (256 levels, 0~255 seconds)

Storage

M.2, 128GB, up to 512GB

Power

Power Supply

12V~ 36V wide pressure input (1*3pin phoenix terminal), standard 12V/5A adapter

OS

O/S

Windows10?Linux

I/O Port

USB

3*USB3.0 +1*USB2.0

Ethernet

2* RJ45 Gigabit network interface

COM

4*RS232 (2*RS485 optional)

Audio

1*Line-out, 1*Mic-in

Display

1*HD+1*VGA

Mini PCIE

1*mini pcie (wifi/bt/4G/5G optional)

GPIO

1*GPIO (2in/2out)

Environmental

Anti-vibration

5-17Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration

Anti-shock

10g acceleration, 11ms duration

IP Level

Front panel IP65

Reliability

MTBF≥50000h; MTTR≤0.5h

Operating Temperature

minus 20°C - bis +70°C

Storage Temperature

-20°C bi +70°C

Operating Humidity

 95% @40°, non-condensing

Mechanical

Dimensions

376mm x 299.5mm x 55mm

Mounting size

VESA mounting: 100*100mm Embedded installation: 393.4*242.6mm

Material

Fanless High-strength and elegant Al-alloy panel

Weight

4.0kg (N.W.) / 4,5kg (G.W)

Color

Black
