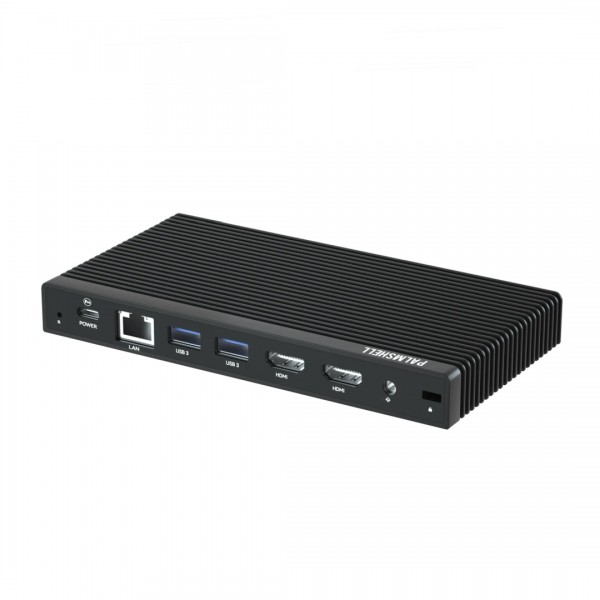

Palmshell Slim X2L Intel® Celeron® J4125 8GB / 32GB Mini PC

RADXA X2L

„Speed meets compactness with the brand new RADXA X2L single board computer, powered by the powerful Intel® Celeron® J4125 processor. With an impressive range of memory options from 2GB, 4GB up to 8GB, the RADXA X2L offers the perfect balance between performance and efficiency. Experience smooth operations and optimal performance in a space-saving, low-profile design. Ideal for demanding applications and projects, the RADXA X2L is revolutionising the world of single-board computers. Unleash the possibilities and design your projects with the RADXA X2L - where compactness meets performance!

Processor

Intel®Celeron®Processor J4125
Quad-core processor / 4 threads @ 2.00 GHz
Burst frequency 2.70 GHz

Intel® UHD Graphics 600
Graphics Base Frequency: 250MHz
Graphics Burst Frequency: 750MHz
DirectX Support: 12
OpenGL Support: 4.4

Memory

LPDDR4@2400 MT/s

2GB /4GB /8GB options

Interfaces

Display

2x HDMI with up to 4k@30

Audio

3.5mm headphone jack with mic input

Wireless

1x M.2 E Key Connector for WiFi / BT Module

Storage

1x M.2 M Key Connector (4-lane PCIe 2.0) for M.2 NVMe SSDs (for OS boot and storage)

USB

2x USB 3.0 HOST Type A
2x USB 2.0 HOST Type A

Ethernet

1x GbE LAN (RTL8111H)

IO

40-pin expansion header

• up to 2 x UART
• up to 2 x SPI
• up to 2 x I2C
• up to 8 x PIO (Programmable IO)
• up to 16 x PWM
• 1 x 5V DC power in
• 2 x 3.3V DC power out

Other

RTC battery socket

4-pin 1.25mm fan header

3-pin debug header

4x buttons:

• 1x power button
• 1x BOOTSEL button for RP2040
• 1x user button
• 1x Clear CMOS Button

Software

Intel® 64 Instruction Set
Windows 10 64-bit
Debian / Ubuntu Linux support
Hardware access/control library for Linux

Power

USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A.
Power adapter with fixed voltage in 9 to 20V range via the USB Type C port

Size

80.6mm x 155.6mm

Operation temperature:

?0°C to 50°C

Certifications:

FCC, CE, RoHS

Availability:

until at least September 2030
