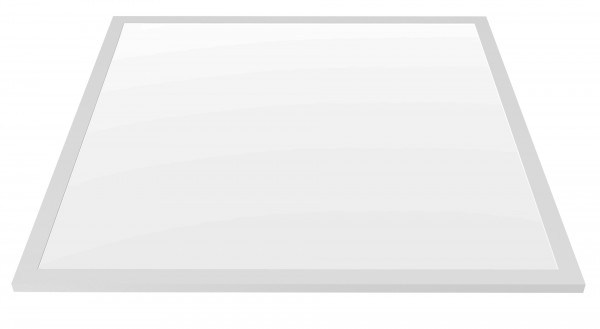

Synergy 21 LED light backlite panel 620*620 WW/NW V4 PRO weiss UGR<19
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 237438
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J02400251
- EAN No.: 4038816139627
- weight: 1kg
- warranty: 60 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
LED backlight - backlite panel
Intended use: Installation in the Odenwald ceiling
Other installation types are also possible with optional accessories
(surface-mounted, flush-mounted, suspended, wall-mounted and recessed, etc.)
Frame colour: white
Power consumption: 25W at 750mA
Number of lumens: 4000Lm, Lm/W=160
Light colour: 3000K/3500K/4000K switchable
MacAdam/SDCM < 3
Colour Rendering Index (CRI): >83
Beam angle: 120°
Unified Glare Rating: UGR<19 at 750mA
Protection class: IP40 / IK05
Rated Lifetime (L80): 50,000h
Operating temperature: -20° to +45° (Amb.)
Power supply: 750mA (constant current) with 25W
Attention: the panel is supplied as standard WITHOUT power supply unit
. Power supply unit: see accessories
Size (external dimensions):622mm x 622mm x 50mm
Size (hole size): 605mm x 605mm
Warranty: 5 years
System efficiency:
750mA / 4000lm / 25W / UGR19 / 160lm/W
Other options:
|
Current (mA) |
System power (W) |
Lumen (lm) |
UGR |
|
700 |
23.8 |
4000 |
19 |
|
750 |
25.5 |
4300 |
22 |
|
800 |
27.2 |
4600 |
22 |
|
900 |
30.6 |
5200 |
22 |
|
1000 |
34.0 |
5700 |
22 |
|
1200 |
40.9 |
7000 |
22 |
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0.75 |
| Betriebstemperatur: | -20° bis +45° |
| CC oder CV: | Konstantstrom |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| Grösse: | 620*620 |
| LED - Gehäusefarbe: | weiß |
| Lichtfarbe: | warmweiß/neutralweiß |
| Lichtfarbe in Kelvin: | 3000/3500/4000 |
| Lumen: | 4000 |
| Schutzklasse: | IP40 |
| UGR: | <19 |
| Volt: | ~33 |
| Watt: | 25 |
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 25.00 |
| Lumen: | 4000.00 |
| Watt: | 25.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
