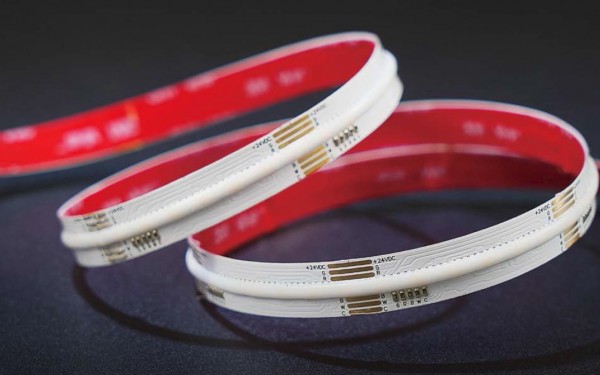

Synergy 21 LED Flex Strip COB - RGB-WW (RGB-CCT) DC24V 75W
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 251628
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F250256
- EAN No.: 4038816156440
- weight: 0.25kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip series COB RGB-WW (RGB-CCT)
For better stability and heat... more
Product information "Synergy 21 LED Flex Strip COB - RGB-WW (RGB-CCT) DC24V 75W"
Synergy 21 LED Flex Strip series COB RGB-WW (RGB-CCT)
For better stability and heat dissipation, a copper strip is embedded on the back.
Voltage: 24V,
Watt: 15W/m 75W total
Light colour: RGBW + CCT(3000-6500K), CRI>90
Brightness: 44Lm/W or 660Lm/M total: 3300LM
Beam angle: 120°
Protection class: IP20
Number of LEDs: 1344LEDs/m, total: 6720LEDs
LED type: COB
Cutting dimension: 50.8mm
LED strip dimensions: 5000*12*2.5mm
Working temperature: -25°C to +40°C
Adhesive tape: yes 3M on the back
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed. No guarantee can be given for overheated LED Strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3.125000 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 12 |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 83,3 |
| Lichtfarbe: | RGB-WW |
| Lichtfarbe in Kelvin: | 3000-6500 |
| Lumen: | 900 |
| Produktname: | COB - RGB/RGBW/RGB-CCT IP20 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 75 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 75.00 |
| Lumen: | 900.00 |
| Watt: | 75.00 |
| Nennlebensdauer: | 50000.00 Std. |
| Schaltzyklen: | 35000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
