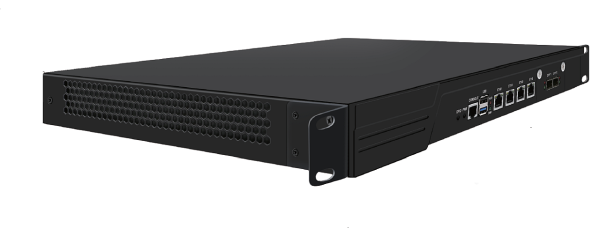

ALLNET Network Appliance/Server 19" Intel® N150 1HU - Barebone 4x 2.5GBit LAN 2x SFP+ / 16GB RAM & 256GB Flash included. NO OS

1U rack-mounted network/security appliance – Intel® N150, 16GB DDR5, 4×2.5G + 2×10G SFP+, 256GB NVMe

This rack-mounted network appliance, based on the Intel® Alder Lake-N platform is ideal as a firewall/UTM, VPN gateway, router or SD-WAN CPE. In your chosen configuration, the system operates with Intel® Processor N150, 16GB DDR5 and high-performance network connectivity comprising 4×2.5GbE RJ45 plus 2××10G SFP+ – perfect for environments where fast uplinks and reliable 24/7 availability are required.

Configuration (as specified by you)

• CPU: Intel® N150 (Alder Lake-N, low-power platform)

• RAM: 16GB DDR5 (SO-DIMM DDR5-4800; platform supports up to 48GB)

  Network: 4 × 2.5G RJ45 (Intel i226-V controller) + 2 × 10G SFP+

• Storage: 256GB NVMe SSD (configuration)

Highlights & Benefits

• Strong network focus: 2.5G ports for LAN/DMZ segmentation + 10G SFP+ for fast backbone/core uplinks.

  Expandable via PCIe: PCIe Gen3 x8 slot (x4 signal) for installation of dual/quad NICs up to 10G SFP+.

• BYPASS option: pre-configured slot/option for the BYPASS function (1–4 ports, customisable) – essential for security appliances in fail-safe operation.

• 1U rack-mount enclosure: with active cooling (multiple fans depending on height) for stable continuous operation.

• Flexible power supply: 100–240 V AC, redundant power supply

• I/O & Management: RJ45 console, USB 2.0/3.0, VGA, as well as features such as Watchdog and PXE/Wake-on-LAN.

• Typical applications

Firewall/UTM, IDS/IPS, VPN gateway, site networking, SD-WAN, routing/load balancing, edge security in industrial or branch operations.
