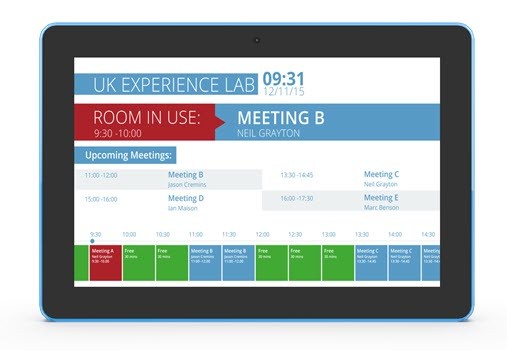

ALLNET meeting room RGB LED tablet 10 inch RK3568 LTE, Android 11 and NFC, color black
product pictures similar, may differ from the product description!
Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 222843
- vendor: ALLNET
- mnufacturer no.: MT10RK3568A11PoENFC-LTE
- EAN No.: 4038816130631
- weight: 1.419kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
manual
Handbuch EN
EU RoHS und REACH Erklärung
ALLNET Meeting Room RGB LED Tablet 10 inch RK3568 LTE, Android 11 and NFC, colour black,... more
Product information "ALLNET meeting room RGB LED tablet 10 inch RK3568 LTE, Android 11 and NFC, color black"
ALLNET Meeting Room RGB LED Tablet 10 inch RK3568 LTE, Android 11 and NFC, colour black, compatible with ReinerSCT
Includes power supply unit and integrated snap-in wall bracket with anti-theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms etc.
The NFC also makes it very easy to implement time recording terminals or info terminals with ID, such as multi-party residential complexes.
We are happy to provide the API/SDK for NFC/RFID and LED on request.
For further information, please refer to the NFC data sheet.
| System | CPU | RK3568,Quad-core cortex A55,1.6G | ||
| RAM | 8GB | |||
| Internal memory | 16GB | |||
| Operation system | Android 11 | |||
Display |
Touch screen | 10-Point capacitive touch | ||
| Panel | 10.1"LCD panel | |||
| Resolution | 1280*800 | |||
| Active area | 217.4(H)x136.4mm(V) | |||
| Display mode | Normally black ,IPS | |||
| Viewing angle | 85/85/85/85/85(L/R/U/D) | |||
| Contrast ratio | 800 | |||
| Luminance | 280cd/m2 | |||
| Aspect Ratio | 16:10 | |||
| Network | WiFi | 2.4/5GHz 802.11a/b/g/n | ||
| Ethernet | 100M/1000M ethernet | |||
| Buletooth | Bluetooth 5.0 | |||
| Interface | Card slot | SD card | ||
| USB | USB Host | |||
| Micro USB | Micro USB OTG | |||
| USB | USB for serial | |||
| RJ45 with POE | RJ45 | |||
| POE | IEEE802.3at | |||
| Power jack | DC power input | |||
| Earphone | 3.5mm earphone | |||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | ||
| Audio format | MP3/WMA/AAC etc. | |||
| Photo | jpeg, png, etc. | |||
| Other | VESA | 204.5mm | ||
| NFC | NFC with 13.56MHz | |||
| Camera | 2.0M/P,Front camera | |||
| Microphone | Microphone | |||
| Speaker | 2*1.5W | |||
| LED Light bar | LED light bar with RGB and mixed colour | |||
| Working temp | 0--40degree | |||
| Certificates | CE/FCC/RoHS | |||
| Language | Multi-language | |||
| Accessories | Adapter | Adapter,12V/1.5A | ||
| User manual | yes | |||
| Unit (Without packaging) | Giftbox (With Packaging) | Carton 5pcs/CTN | ||||||
| L | W | H | L | W | H | L | W | H |
| 259.36mm | 178.36mm | 28mm | 390mm | 220mm | 68mm | 405mm | 363mm | 240mm |
| Net(kg) | 0.74KG | Net(kg) | 2.3KG | |||||
Produktmerkmale:
| Abmessung: | 259.36 x 278.36 x 28 |
| Alternative Betriebssysteme: | Linux |
| Arbeitsspeicher (RAM): | 8 |
| Auflösung Panel: | 1280x800 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3568 |
| Diagonale: | 10 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 32 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | integrierte Halterung |
| NFC&RFID: | 13,56MHz |
| Produktart: | Tablet |
| Stromversorgung: | PoE&Netzteil |
| Touchscreen: | kapazitiv |
| WLAN: | 2,4&5 |
