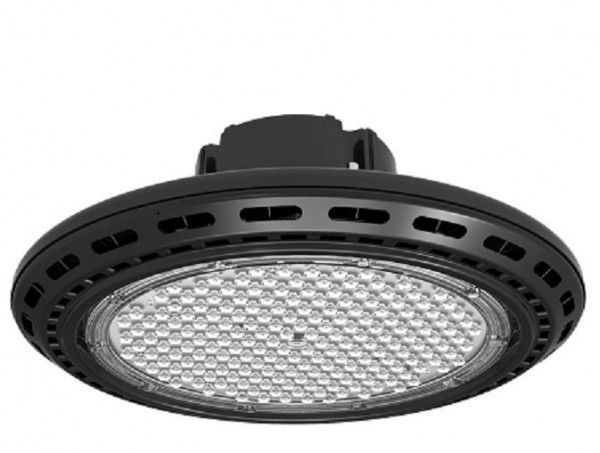

Synergy 21 LED spot pendant luminaire UFO 160W for industry/warehouses nw 90°
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 131077
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-UFO0024
- EAN No.: 4038816053886
- weight: 4.8kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
Lichtberechnungsdatei
EU RoHS und REACH Erklärung
AC 90-305V/50-60Hz
Dimmable: no
Power: 160 Watt
Luminous flux: 21600 lm
Efficiency: 135lm/W... more
Product information "Synergy 21 LED spot pendant luminaire UFO 160W for industry/warehouses nw 90°"
AC 90-305V/50-60Hz
Dimmable: no
Power: 160 Watt
Luminous flux: 21600 lm
Efficiency: 135lm/W
Beam angle: 90°
CRI Ra: > 80
Light colour: neutral white
Kelvin: 4000K ± 10%
Operating temperature: -40 to +55°C
Protection class: IP65, IK10, "D" mark according to EN 60598-2-24
Weight: 4.8kg
Diameter: 325mm
Complete height: 187.5mm
Energy efficiency class: A++
kWh/1000h: 160
5 year guarantee
IES files available on request
Produktmerkmale:
| Abstrahlwinkel: | 90 |
| Betriebstemperatur: | -40 bis +55 |
| CRI: | >80 |
| Dimmbar: | Nein |
| Grösse: | 260*177,5 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 21600 |
| Schutzklasse: | IP65, IK10 |
| Volt: | 230 |
| Watt: | 160 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 160,0 |
| Lumen: | 21600 |
| Watt: | 160 |
| Nennlebensdauer: | 50000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
