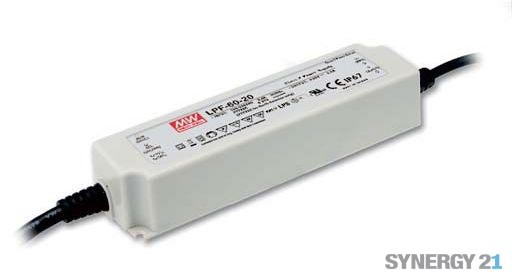

Mean Well power supply - CC Driver 1400mA ~42V 0-10V dimm IP67
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 113856
- vendor: Meanwell
- mnufacturer no.: LPF-60D-42
- EAN No.: 4711287458946
- weight: 0.45kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
LPF-60D-42
IP67
Dimmable: 0-10V see data sheet
Input: 90-305VAC
Output: 1.43A, 42V DC ,... more
Product information "Mean Well power supply - CC Driver 1400mA ~42V 0-10V dimm IP67"
LPF-60D-42
IP67
Dimmable: 0-10V see data sheet
Input: 90-305VAC
Output: 1.43A, 42V DC , 60.06 Watt, constant current
Operating temperature: -40°C to +70°C, see data sheet
LxWxH 162.5x43x32mm see also data sheet
Protection markings: see data sheet
Open cable ends
Cable length: approx. 30 cm each
Produktmerkmale:
| Ampere: | 1.40 |
| Betriebstemperatur: | -40 bis +70 |
| CC oder CV: | CC |
| Dimmbar: | ja |
| Grösse: | 162,5*43*32 |
| Schutzklasse: | IP67 |
| Volt: | 42 |
| Watt: | 60.06 |
