Synergy 21 LED Flex Strip 70 KW DC24V 36W IP20 CRI>90 2110

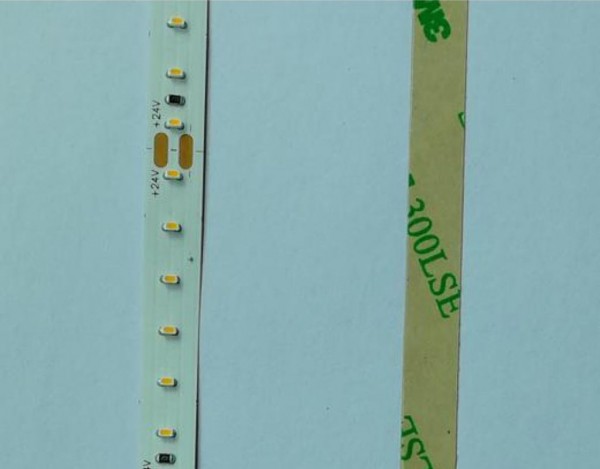

Synergy 21 LED Flex Strip 2110
2110=LED chip size 2.1mm x 1.0mm

Length: 5m
Voltage: 24V, (12V available on request)
Watt: 7,2W/m, 36W
Light colour: cold white, 6000K, CRI>90 (R9>60)
Brightness: 677lm/m Total: 3385lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 70*2110SMD/m, total: 350LEDs
Dimensions: 5000*8*3mm
PCB colour: white,
Operating temperature: -25°C to +40°C
Shortenable every 7 LEDs 100mm
Adhesive tape: yes 3M on the back

Energy efficiency class: A+
kWh/1000h: 39.6

Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.

Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.

Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
