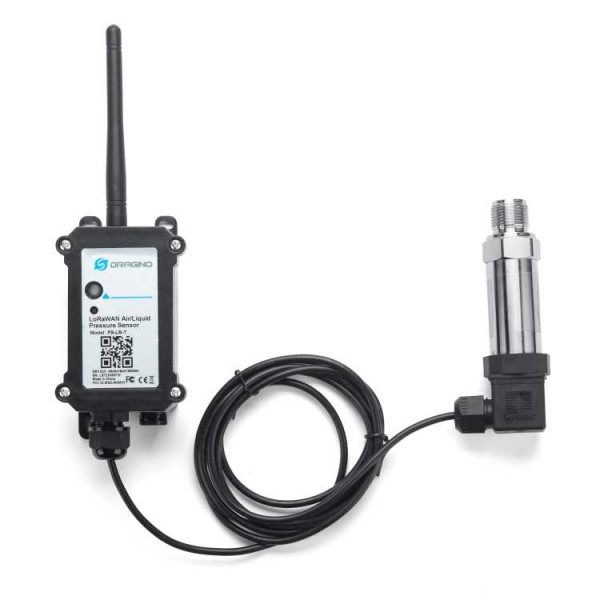

DRAGINO · Sensor · LoRa · Luft- und Wasserdrucksensor · PS-LB-TG2-B-EU868

The Dragino PS-LB series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

The PS-LB series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.

The LoRa wireless technology used in PS-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

PS-LB supports BLE configure and wireless OTA update which make user easy to use.

PS-LB is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each PS-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

This sensor is intended for measuring air pressure in pipes. To measure water pressure in tanks please use art. 217626

This sensor has a probe for threaded installation with a G1/2 thread and the following features:

• Hersman pressure transmitter
• Measuring range: 0-1MPa - for other measuring ranges please contact our sales department.
• Accuracy: 0.2% F.S.
• Long term stability: 0.2% F.S ±0.05%.
• Overload 200% F.S.
• Zero temperature drift: 0.03% FS/°C(≤100Kpa), 0.02%FS/°C(>100Kpa).
• FS temperature drift: 0.003% FS/°C(≤100Kpa), 0.002%FS/°C(>100Kpa).
• Storage temperature: -30°C~80°C
• Operating temperature: -20°C~60°C

Features:

• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Measure air / gas or water pressure
• Different pressure range available
• Thread Installation Type or Immersion Type
• Monitor Battery Level
• Bands: EU868
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Battery for long term use

Specifications:

  Micro Controller:

• • MCU: 48Mhz ARM
  • Flash: 256KB
  • RAM: 64KB

   Common DC Characteristics:

• • Supply Voltage: 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

    LoRa Spec:

• • Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

    Current Input Measuring :

• • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

   Voltage Input Measuring:

• • Range: 0 ~ 30v
  • Accuracy: 0.02v
  • Resolution: 0.001v

   Battery:

• • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

   Power Consumption:

• • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
