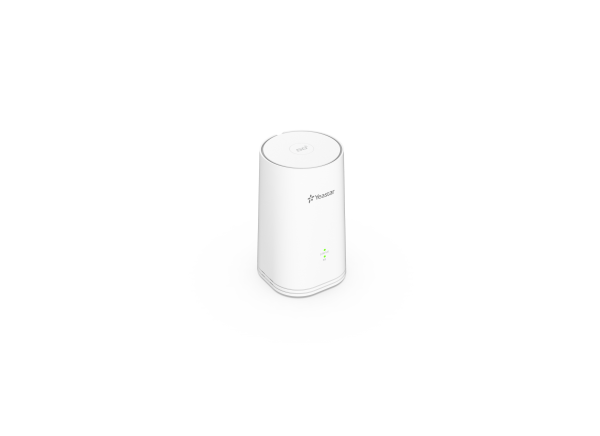

Yeastar 5G CPE Router, 4×4 MIMO 5G, WiFi5, LAN direkt, in- &
-
Last Stock Article
- stock: 0
- part no.: 206396
- vendor: Yeastar
- mnufacturer no.: 5G CPE
- EAN No.: 6974225039012
- weight: 2kg
- warranty: 36 months
- Do you have any questions concerning this product?
Downloads
data sheet DE EU RoHS und REACH ErklärungHighlights
- High Performance Qualcomm Quad-core Processor & 512 MB RAM
- Support 5G NSA/SA, 4G, and 13 5G frequency bands for a wide coverage
- 2.5 Gbps peak 5G download speed
- Gigabit Ethernet ports for lightning transmission of data
- 4x4 MIMO 5G cellular, omnidirectional antennas guarantee better signal
- 2.4GHz and 5GHz Dual Bands Wi-Fi
- Embrace resilience and uptime with link failover
- Secure transmission with VPN tunnels
- Reliable firewall for secure networking
- Flexible mounting options: desktop, wall, pole, or screw locking
- Built for indoor and outdoor: sleek cylinder design and IP67 protection
Yeastar 5G CPE is a 5G connection hub that converts 5G signals into Wi-Fi or wired Ethernet. Running with a router or switch, it connects businesses with ultra-fast networks. High signal quality, wide coverage, and up to 2.5 Gbps download speed empower Yeastar 5G CPE to deliver Gigabit speeds effectively. It also makes it convenient for businesses to reap the benefits of 5G and apply it in various scenarios.
Unleash the Full Speed of 5G
Yeastar 5G CPE is a 5G connection hub that converts 5G signals into wired Ethernet or Wi-Fi. Running with a switch or router, it connects businesses with ultra-fast networks. High signal quality, wide coverage, and up to 2.5 Gbps download speed empower Yeastar 5G CPE to deliver Gigabit speeds effectively. It also makes it convenient for businesses to reap the benefits of 5G and apply it in various scenarios.
Technische Informationen
Processor | Qualcomm Quad-core CPU, 716.8 MHz , ARM Cortex-A7 8 GB Flash Memory, 512 MB DDR3 RAM |
Cellular | Applicable Network: 5G / 4G LTE Network Mode: NSA/SA 8 Built-in Antennas |
Interface |
Ethernet: 2×10/100/1000 Mbps |
Wi-Fi | Frequency Band: 2.4 GHz & 5 GHz IEEE 802.11a/b/g/n/ac WEP/WPA/WPA2 Authentication WEP/TKIP/AES Encryption Work as a Client or AP 4 Built-in Antennas |
Software | Network Protocol: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP Telnet, VLAN, SSH, etc. VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE Firewall: SPI, ACL, DMZ, Port Forwarding AAA: Radius, Tacacs+, LDAP, Local Authentication High Availability: VRBP, Link Failover |
Power | 9-48 VDC, Surge Protection, Reverse Polarity Protection, 802.3af POE |
Physical | Protection Level: IP67 Dimension: 105 x 110 x 188 mm Dimension (with waterproof connector): 105 x 110 x 218 mm Wall Mounting, Pole Mounting, Desktop Mounting, and Screw Locking |
Environment | Operating temperature: -40°C~70°C Storage temperature: -40°C~85°C Humidity: 0% ~ 95% (non-condensing) under 25°C |
Management | Via Web Management Portal, CLI, SMS, SNMP v1/v2/v3 Remote Management |
