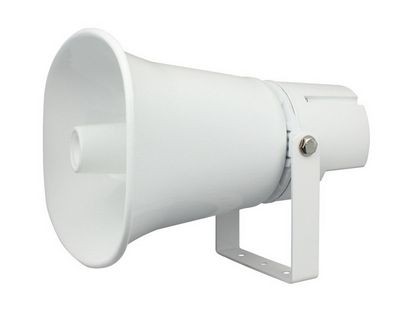

Portech VoIP SIP IP Speaker IS-650 PoE Horn-Speaker
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 149891
- vendor: Portech
- mnufacturer no.: IS-650
- weight: 1kg
- Do you have any questions concerning this product?
IS-650 is a IP Horn (POE) provide a user-friendly control and simple voice broadcasting. The product is designed to provide easy use for any office,department store,factory,school to be able to quickly broadcast announcements to their any assigned office or branch or classes
IS-650 can work P to P ,IP to IP and Compatible with IP-PBX,Traditional PBX,Asterisk,Trixbox,SIP Server
Option: IP Broadcasting System
User can broadcast announcements to a group of office or branch or classes.
IBS-5: handle 5 pcs IS serial devices
IBS-10: handle 10 pcs IS serial devices
IBS-20: handle 20 pcs IS serial devices
IBS-40: handle 40 pcs IS serial devices
IBS-60: handle 60 pcs IS serial devices
IBS-80: handle 80 pcs IS serial devices
IBS-200: handle 200 pcs IS serial devices
*Open API for software integration
Features
-
SIP (RFC 3261) compatible
-
Web-based configuration
-
Web-based firmware upgradable
-
High efficiency speaker driver
-
Powerful built-in amplifier:30W
-
Remote control
-
Work with extra IP Speaker Server to make group broadcast
Specifications:
-
Speaker:11 x 8 "
-
Protocols:SIP (RFC2543,RFC3261)
-
Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B
-
LAN connection :RJ-45 connector
-
Ethernet I/F 10/100 Mbps
-
Power: Power over Ethernet(POE) IEEE 802.3at (max.30W)
(compatible with non-stardand POE injector and stardand POE Injector both) -
Dimensions 28 X 20 X 28cm
-
Weight: 2.5kg
-
Warranty 1 year
Application:
-
System Integrator
-
Large Multinational Corporation
-
Design firm
Framework
IP Speaker Specification |
||||||||
Wood speaker |
Horn speaker |
Ceiling speaker |
Wall speaker |
IP Audio Gateway |
||||
Model No |
IS-640 |
IS-640P |
IS-650 |
IS-660 |
IS-670 |
IS-381 |
IS-382 |
IS-3840 |
Speaker |
8 “ |
8 “ |
11*8 “ |
5” |
6.5”+2” |
--- |
--- |
--- |
AMP circuit |
V |
V |
V |
V |
V |
--- |
--- |
V |
DIM (cm) |
17.5x28x24.5x9 |
17.5x28x24.5x9 |
28x20x28 |
19.8x16.6x11 |
27x15x19.5 |
17X14.5X4 |
17X14.5X4 |
17X14.5X4 |
Weight (g) |
3000 |
2640 |
2020 |
900 |
2050 |
265 |
270 |
275 |
Impedance |
8Ω |
--- |
||||||
Rated Power |
40W |
40W |
30W |
6W |
30W |
40W |
||
Power supply |
110V-240V 1A |
PoE(30W) |
110V-240V 12V/1A |
110V-240V 24V/4A |
||||
Water Protection |
--- |
--- |
IP66 |
--- |
IP55,IP-X3 |
--- |
||
Protocol |
SIP(RFC2543,RFC3261) |
|||||||
Codec |
G.711 u-Law,G.711 a-Law |
|||||||
LAN connection |
RJ45 10/100 Mbps |
|||||||
Warranty |
1 Year |
