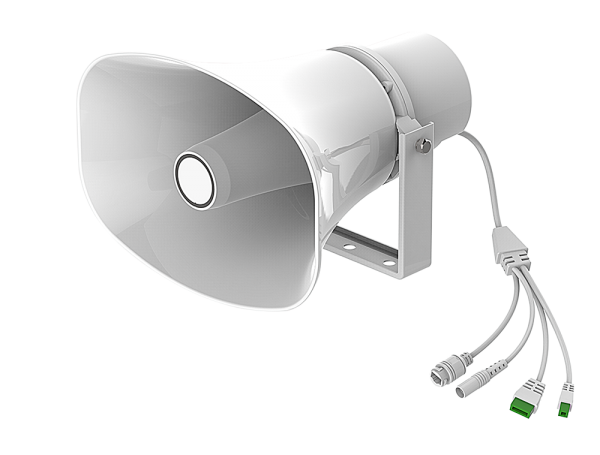

Fanvil A233, Horn Speaker /
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 236086
- vendor: Fanvil
- mnufacturer no.: A233
- EAN No.: 6937295606737
- weight: 1.3kg
- warranty: 24 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Supports HD intercom
Easy to manage: Support Web, DM software, FDMCS and Fanvil broadcast... more
Product information "Fanvil A233, Horn Speaker /"
Supports HD intercom
Easy to manage: Support Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
2 SIP lines
Support 20 multicast partitions
10/100 Mbps
Support standard SIP protocol, HTTP API, short circuit input and output and video linkage, easy to integrate with third-party systems
Network mode: IPv4/IPv6/IPv4&IPv6
U-bracket installation
Support PoE/PoE+ power supply or DC24V/2A power supply
Technical Details:
| Details |
A233 Horn Speaker |
| Installation | U-bracket installation |
| Microphone | YES |
| Speaker power | 15W PoE+; 30W DC24V |
| Frequency response | 350-7.5KHz |
| Sensitivity | 107dB±3dB 1M/1W |
| Audio filesstorage | 24MB |
| Support protocol | SIP/Onvif |
| Maximum SPL | 120dB(1m / 30W) |
| Short circuit input | 1 |
| Short circuit output | 1 |
| Audio line in/output | × |
| Power supply | PoE + / 24V DC 2A |
| Protection Level | IP66 |
| Working temperature | -30°C~ 60°C |
| Weight | 1.90kg |
| Dimension(w×h×d) | 285×285×205mm |
