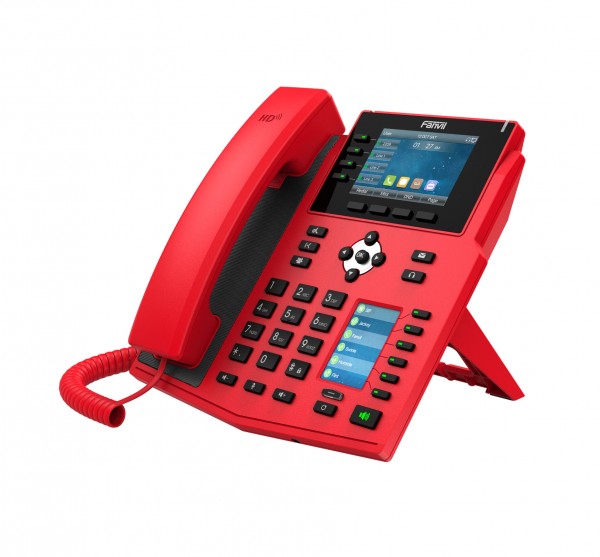

Fanvil X5U-R, Red Phones for Hospitality, Fire Station etc. solution High-end business phone with Gigabit / SIP / POE / Gigabit / USB-Port
-
Last Stock Article
- stock: 0
- part no.: 183925
- vendor: Fanvil
- mnufacturer no.: X5U-R
- EAN No.: 6937295602159
- weight: 1.234kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Highlights
- 16 SIP lines, 3-way conference, SIP hotspot
- 4 Line keys on the main display
- HD audio on speakerphone and handset
- 1x3.5” main color display, 1x2.4” side color displays for DSS keys
- Built-in Bluetooth for connecting Bluetooth headset
- Support Wi-Fi connectivity (Via Wi-Fi dongle)
- Support EHS wireless headset
- Up to 30 DSS keys (6 two-colored physical keys)
- Dual Gigabit ports, integrated PoE
- Stand with 2 adjustable angles of 45 and 50 degrees
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Special and well-marked, red Fanvil X5U-R can be recognized by the first sight clearly in the distance. It is designed to be used in special application scenarios where the devices need to be found easily in an emergency, such as fire stations, hospitals, government agencies, etc.
XS/XU Series IP Phone
As the ideal IP phone with elegant appearance, Fanvil XS/XU series provides users the direct access to instructions with the intuitive design of one or multiple high-resolution displays and newly increased line keys, offering greater flexibility, productivity, to exceed the different demands of businesses. Fanvil XS/XU series IP phone delivers you an immersive HD audio experience in both high band and low band with the network.
Technical Information
| Device Dimensions | 214x188.6x181.1 mm |
| Display | Main LCD x1: 3.5-inch (480x320) Color Screen |
| Ports |
2x RJ9 Port (Handset x1, Headphone x1) 2x RJ45 Port (Network x1, PC x1) USB2.0 Port x1: Standard A, Connect with USB dongle(BT or Wi-Fi) or Flash Driver |
| Protocols | SIP2.0 over UDP/TCP/TLS | RTP/RTCP/SRTPSTUN DHCP | IPv6 | LLDP | PPPoE | 802.1x | L2TP | OpenVPN | SNTP | FTP/TFTP | HTTP/HTTPS | TR-069 | AES128 & AES256 |
| Network | 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass |
| DC Power Input | 5V / 2A |
| Power Consumption | 1.7W~10.46W |
