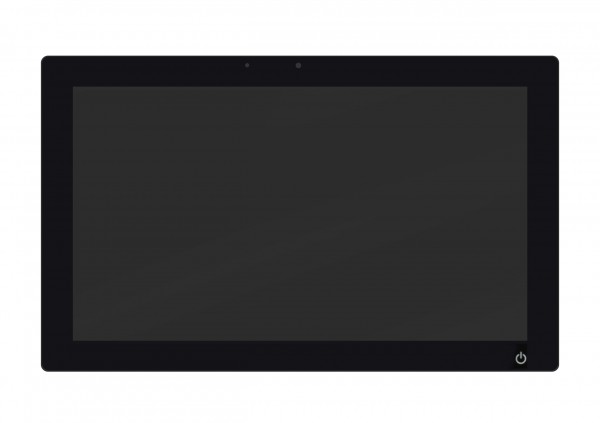

ALLNET Touch Display Tablet 18 inch PoE with 4GB/16GB, RK3566, FullHD Android 11 black
-
Last Stock Article
- stock: 0
- part no.: 212127
- vendor: ALLNET
- mnufacturer no.: ALLTAB18RK3566A11PoE
- EAN No.: 4038816212122
- weight: 3kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung
There is a successor to this product
Advertising ALLinOne PC with Rockchip RK3566 CPU and Android 11. 4GB Ram / 16GB memory. Expandable by USB and SD cards. Resolution 1366x768, PoE (Power over Ethernet).
The 3566 is a new processor from Rockchip and is optimally suited as a visualization display.
The power touch button in the front can be deactivated by software.
|
Model NO. ALLTAB-18RK3566A11PoE |
||
|
Product Type |
18" POE |
|
|
Description |
||
|
System |
CPU/GPU |
Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
|
RAM |
4GB |
|
|
ROM |
16GB |
|
|
System |
Android 11 |
|
|
Display |
screen |
18 Zoll IPS Panel |
|
resolution |
1920x1080 FullHD Wide viewing |
|
|
Contrast |
1000:1 |
|
|
Brightness |
500nits | |
|
Network |
WiFi |
802.11a/b/g/n 2,4/5GHz |
|
Ethernet |
POE |
|
|
Bluetooth |
YES |
|
|
3G |
Support external 3G USB dongle |
|
|
Jack |
SD |
Support SD card ( Max 32G ) |
|
Mini USB |
Mini USB |
|
|
USB Host x 3 |
USB Host 3.0/2.0 |
|
|
RJ-45 |
built in |
|
|
DC |
DC input |
|
|
Headset |
3.5mm stereo headphone/micro output |
|
|
Multimedia |
Video |
Video decode – H.264/H.265/VP9 |
|
Audio |
MP3/WMA/AAC etc. |
|
|
Picture |
jpeg, jpg |
|
|
other functions |
Wireless mouse |
Support |
|
Wireless keyboard |
Support |
|
|
Speak |
2Wx2 |
|
|
Camera |
2 million pixel camera |
|
|
OSD Language |
Multi language OSD operation |
|
|
attachment |
Adapter |
12V/2A |
|
Desktop Bracket |
Standard |
|
| Vesa | 75x75mm | |
| Measurement | 462x282,5x37,5mm | |
Limitations:
The tablets cannot be compared with tablets from the main brands. The Android is based on AOSP. Some apps and functions are therefore limited and not functional.
Produktmerkmale:
| Abmessung: | 462x282,5x37,5 mm |
| Alternative Betriebssysteme: | Linux |
| Arbeitsspeicher (RAM): | 4 |
| Auflösung Panel: | 1920x1080 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3566 |
| Diagonale: | 18 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | Vesa 75x75 |
| Produktart: | Tablet |
| SIP Einbindung: | nein |
| Stromversorgung: | PoE und Netzteil |
| Touchscreen: | Capacitiv |
| Video Eingang: | nein |
| WLAN: | 2,4/5 |
