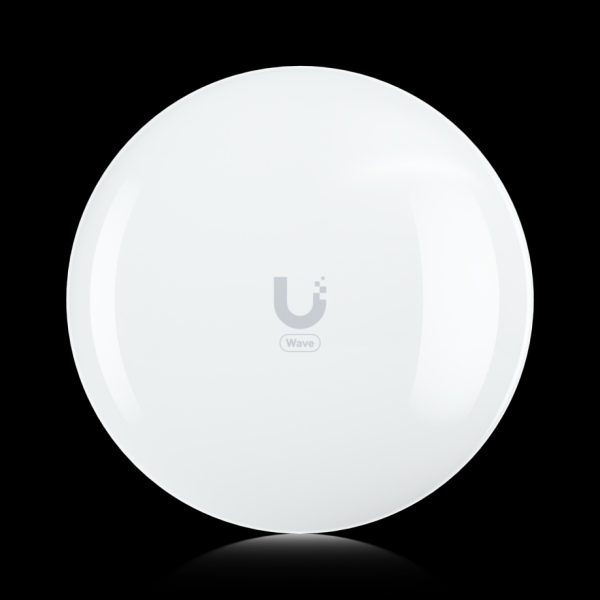

Ubiquiti Wave Pico /60 GHz PtMP / 2 Gbps /RJ45 port/ Bluetooth / Wave-Pico
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 228603
- vendor: Ubiquiti
- mnufacturer no.: Wave-Pico
- EAN No.: 810084693872
- weight: 0.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Lightweight, compact 60 GHz PtMP station with Wave technology.
Max. Connection... more
Product information "Ubiquiti Wave Pico /60 GHz PtMP / 2 Gbps /RJ45 port/ Bluetooth / Wave-Pico"
Lightweight, compact 60 GHz PtMP station with Wave technology.
Max. Connection range:
— Wave AP: 1.3 km
— Wave AP Micro: 0.9 km
Max. Throughput: 2 Gbit/s (1 Gbit/s duplex)
Weatherproof 5 GHz backup radio (max. throughput: 800 Mbit/s)
(1) GbE RJ45 port
Integrated Bluetooth
Technical specifications
| Mechanical | |
|---|---|
| Maße | Ø152.1 x 55.8 mm (Ø6 x 2.2") |
| Weight | Without mount: 347 g (12.2 oz) With holder: 409 g (14.4 oz) |
| Features | UV-stabilised polycarbonate |
| Mounting material | UV-stabilised polycarbonate |
| Diameter of the mast bracket | 20 to 53.1 mm (0.8 to 2.1") at the tube diameter |
| Wind load | 31.3 N at 200 km/h (7 lbf at 125 mph) |
| Weatherproof | IPX6 |
| Hardware | |
| Processor | Dual-Core ARM® Cortex®-A53 with 1 GHz |
| Reminder | DDR3L 512 MB |
| Network interface | (1) GbE RJ45 port |
| Max. Power consumption | 10 W |
| Performance method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -), only for 44–54 V DC |
| Power supply | 48 V DC, 0.5 A Gigabit PoE adapter (included) Can be supplied with power via a UISP router or UISP switch |
| Supported voltage range | 44–54 V DC 22–27 V direct current |
| GPS | NO |
| key | Factory settings reset |
| LEDs | Power, Ethernet, connection |
| Operating ambient temperature | -40 to 60 °C (-40 to 140 °F) |
| Humidity during operation | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| mode of operation | PtMP station, PtP |
| Ubiquiti-specific functions | Wave AI, detection protocol |
| Services | UISP, Ping-Watchdog, NTP-Client, SNMP |
| Tools | Antenna Alignment, Discovery Utility, Ping, Traceroute, Speed Test, Cable Test*, Site Survey* *FW version 3.3.0 and higher. |
| Network | Bridge/Router* mode *Router is only available in PtMP station mode. |
| Application requirements | UISP Web: Version 2.4.61 and higher UISP Mobile iOS™: Version 2.32.0 and higher UISP Mobile Android™: Version 2.31.9 and higher |
| system | |
| Total throughput | 2 Gbit/s (1 Gbit/s duplex) |
| Maximum range | Up to 1.3 km (Wave AP) Up to 0.9 km (Wave AP Micro) |
| Encapsulation | WPA2-PSK (AES) |
| RF | |
| Working frequency* | 57–71 GHz *Depending on the regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and higher. |
| Operator channeläle* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 27.7 dBi |
| Polarisation | Vertical linear |
| beamwidth | Azimuth: 3 dB 6° Elevation: 3 dB 6° |
| Backup-RF | |
| WiFi Standard | 802.11ax (WLAN 6) |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5180 - 5875 MHz *Depending on the regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 9 dBi |
| Polarisation | Dual-linear |
| beamwidth | Azimuth: 3 dB 50° Elevation: 3 dB 50° |
| Cross-pole insulation | 15 dB |
| LEDs | |
| Performance | White; flashing: boot process is running White: not connected to UISP application Blue: connected to UISP application Flashing blue: localisation in progress Blue/white: Firmware upgrade in progress |
| Ethernet | Blinking blue: Ethernet traffic detected |
| Links | White": 5 GHz connection Blue: 60 GHz connection |
