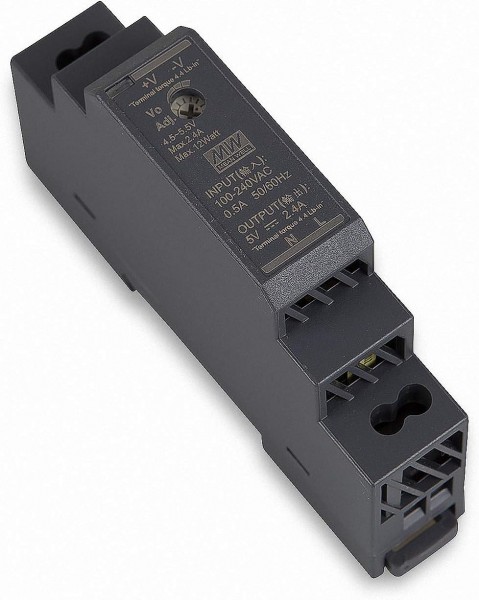

ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5

ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5
ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5
ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5

Preview: ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5 Preview: ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5 Preview: ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description
Description
Switch-mode power supply, DIN mounting Switch-mode power supply, DIN mounting, 12 W 5 V / 2.4... more
Close menu
Product information "ALLNET replacement power supply - 5V / 2.4A 12W Mean Well top-hat rail HDR-15-5"

Switch-mode power supply, DIN mounting
Switch-mode power supply, DIN mounting, 12 W 5 V / 2.4 A.

Can be mounted directly on the DIN rail
Closed design, touch-protected screw connections
Universal input
Overload protection through current limitation, auto recovery
protected against short circuit, overload, overvoltage
Low no-load power
LED display for power-on
Insulation class II


Output voltage: 5 V
Output current: 2.4 A
Output power: 12 W
Residual ripple: 80 mVp-p
Efficiency: 80%

Input voltage range: 85...264 V AC (47...63Hz)/ 120...370 V DC
Inrush current, max.: 45 A
Overload protection: 110...145%
Insulation voltage, I/P-O/P: 3000 V AC
Operating temperature range: -30...+70 °C
Weight: 78 g

Produktmerkmale:

Ampere: 2,4
Betriebstemperatur: -30 bis +70
CC oder CV: CV
Dimmbar: Nein
Grösse: 17,5*90*54,5
Schutzklasse: IP20
Volt: 5
Watt: 12
