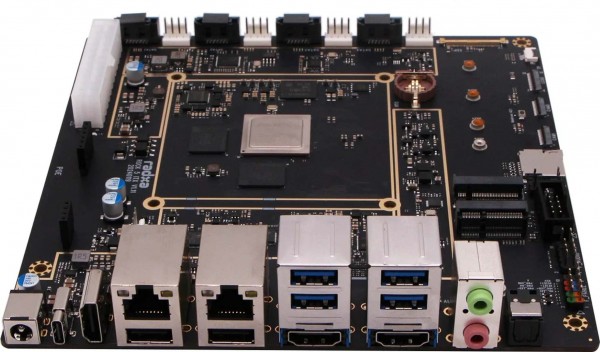

Radxa Rock 5 ITX RK3588 24GB LPDDR4 RS009-D24E8

Rockchip RK3588 64bit octa core ARM based ITX Motherboard

RADXA's latest innovative motherboard based on the Rockchip RK3588 in the recently introduced ITX form factor. Leading SOC technology (8nm manufacturing process) in combination with an extensive range of functions is now entering the ITX motherboard segment.

Rock 5 ITX product details*

RK358864bit octa core processor

Quad Core A76 2.2~2.4GHz + Quad Core A55 1.8GHz

GPU

Mali G610MP4 GPU (up to 5 channel 4k UI)

8K 10bit decoder, 8K encoder

NPU

6TOPs NPU

Support of INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration

Memory LPDDR5

LPDDR5 with 4, 8, 16 or 32GB

SPI Flash

32MB SPI flash soldered

Wifi/BT

WiFi 6E and BT5.2 support via opt. WiFi module

Storage

1x 8GB eMMC onboard for ROOBI OS

1x microSD card slot

1x M.2 connector M key for NVMe with PCIe 3.0 x2 lanes

4x SATA ports with power header

Video Output (up to 4 display outputs at a time)

1x HDMI 2.1 up to 8k@60FPS

1x HDMI 2.1 up to 4k@60FPS

1x USB-C with DP up to 4K@60FPS

2x 4-lane MIPI DSI for MIPI LCD

1x eDP with Touch Panel support

Video Input

1x HDMI Input up to 4k@60FPS

2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI

USB

2x USB 2.0 Type-A HOST ports

4x USB 3.0 Type-A HOST ports

1x USB 3.0 OTG / HOST Type-C port

2x USB 2.0 interface via front USB header

Network

Wireless / Bluetooth

1x M.2 E Key Connector for WiFi 6

LAN

2x 2.5GbE LAN with PoE support

(additional module required for powering via PoE)

Other:

- 1x PWM fan connector
- 1x RTC Socket(CR1220 battery)
- 1x Front Panel header for Power Button / Reset Button / Status LED

Power

1x 12V DC Power Jack(55x25mm)

1x Standard 24-Pin ATX Power Supply Interface

1x PoE Header(Additional PoE Module Required)

Size 170mm x 170mm

Recommended operating temperature: 0 ~ 50°C

Essentials You Need

• ROCK 5 ITX
• 12V DC power supply
• Keyboard & Mouse
• Monitor with HDMI input
