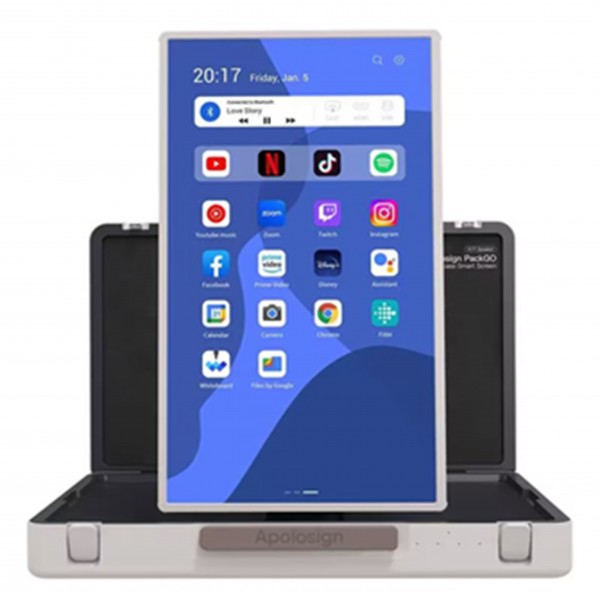

ALLNET Presentation Suitcase High Performance Display 27 Zoll, Android 13, RK3588, HDMI In, Koffer
- stock: 0
 - part no.: 228099
 - vendor: ALLNET
 - mnufacturer no.: Rocket 240 Suitcase
 - EAN No.: 4038816228093
 - weight: 7kg
 - warranty: 12 months
 - Do you have any questions concerning this product?

Downloads
Allnet Display 27 inch case for presentations at trade fairs and customer visits
High-performance RK3588 Octa Core chipset (4xA73+4xA55)
8GB RAM
Wifi 6 Gigabit Wlan
NFC (optional ext. USB NFC module for fixing on the side)
Android 12 & Linux
Incell touch surface
HDMI input for external devices
Integrated battery
|
 System  |
 CPU  |
 RK3588 Quad core cortex A55+Quad core cortex A76  |
|
 RAM  |
 8GB  |
|
|
 Internal memory  |
 128GB  |
|
|
 Operation system  |
 Android 12  |
|
|
 Display  |
 Panel Size  |
 24"LCD  |
|
 Panel Type  |
 IPS  |
|
|
 Resolution  |
 1920*1080, 3840x2160  |
|
|
 Display Colors  |
 16.7M Colors  |
|
|
 Color Gamut  |
 sRGB 99%  |
|
|
 Display mode  |
 Normally black  |
|
|
 Viewing angle  |
 85/85/85/85(L/R/U/D)  |
|
|
 Contrast ratio  |
 1000:1  |
|
|
 Luminance  |
 250cdm2  |
|
|
 Aspect Ratio  |
 16:9  |
|
|
 Response Time  |
 14ms  |
|
|
 Back-light Type  |
 Eled  |
|
|
 Touch  |
 Model Type  |
 Incell Touch  |
|
 Number of points  |
 10-Point  |
|
|
 Interface for touch  |
 HID-USB  |
|
|
 Network  |
 WiFi  |
 802.11b/g/n/a/ac/ax (WiFi 6)  |
|
 Ethernet  |
 100M/1000M  |
|
|
 Bluetooth  |
 Bluetooth 5.0  |
|
|
 Interface  |
 Power Jack  |
 DC power input  |
|
 MIC IN  |
 External microphone input  |
|
|
 Earphone Output  |
 3.5mm earphone output  |
|
|
 Type-c  |
 Full Function ( Except for charging function )  |
|
|
 SIM Slot  |
 no  |
|
|
 USB  |
 Standard USB 2.0 Host  |
|
|
 USB  |
 USB 3.0  |
|
|
 USB  |
 USB 3.0  |
|
|
 HDMI IN  |
 Support HDMI 2.0  |
|
|
 RJ45  |
 Ethernet interface  |
|
|
 Other  |
 Product Colors  |
 white/Black  |
|
 VESA  |
 100mm*100mm  |
|
|
 Button  |
 Power/Vol+/Vol-  |
|
|
 Other Power  |
 Speaker  |
 4O*5W*2  |
|
 Microphone  |
 Built in dual Microphone , Support noise reduction and echo cancellation  |
|
|
 NFC  |
 no  |
|
|
 G-sensor  |
 Support 90 degrees  |
|
|
 Camera  |
 no  |
|
|
 Language  |
 Multi-language  |
|
|
 Certificates  |
 CE/FCC  |
|
|
 Power Type  |
 Adapter  |
|
|
 Input Voltage  |
 DC 12V/4A  |
|
|
 Power consumption  |
 =25W  |
|
|
 Working Surrounding Accessories  |
 Storage Temperature  |
 -20?---60?  |
|
 Working Temperature  |
 0?---50? 10~90%RH  |
|
|
 Adapter  |
 Adapter,12V/4A  |
|
|
 Working Surrounding  |
 User manual  |
 yes  |
Produktmerkmale:
| Arbeitsspeicher (RAM): | 8 |
| Auflösung Panel: | 1920x1080 |
| Betriebssystem: | Android 13 |
| Bluetooth: | ja |
| Chipset: | RK3588 |
| Diagonale: | 27 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 128 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | nein |
| Mobilfunk: | USB Stick |
| Montageart: | Vesa 100x100 |
| Produktart: | Display |
| Stromversorgung: | Netzteil |
| Touchscreen: | Capacitiv |
| Video Eingang: | HDMI |
| WLAN: | 2,4/5 |
