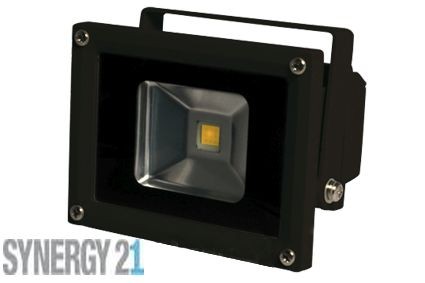

Synergy 21 LED Spot Outdoor floodlight 10W black housing - cool white V2
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 128122
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM01048
- EAN No.: 4038816052551
- weight: 0.69kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
With emergency power function (from 80V approx. 20% brightness) and
reversible overheating protection
Dimmable (leading edge and trailing edge phase dimmer)
Single-pane safety glass
Stainless steel mounting bracket
IP65 suitable outdoor cable H05RNF without plug (0.7m)
With emergency power function and overheating protection
Operating voltage: > AC 207-253V/50-60Hz
LED: 10Watt high-power chip
Beam angle: 120°
Range approx. 15 metres
Lumen: 900lm, 90lm/watt
Cold white: 6000K ±150
Housing: injection-moulded aluminium in black
Dimmable: yes (leading edge and trailing edge phase control dimmer)
Operating temperature: -10°C to +55°C
Protection class: IP65 (water jet-proof)
Dimensions: (l*w*h) 115*90*105mm
Energy efficiency class: A+
kWh/1000h: 10
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Betriebstemperatur: | -25°C bis +55°C |
| CRI: | >80 |
| Dimmbar: | TRIAC |
| Grösse: | 115*90*105 |
| LED - Gehäusefarbe: | schwarz |
| LED - Gehäusematerial: | Aluminium |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6000 |
| Lumen: | 900 |
| Schutzklasse: | IP65 |
| Volt: | 230 |
| Watt: | 10 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 10,00 |
| Lumen: | 900 |
| Watt: | 10,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
