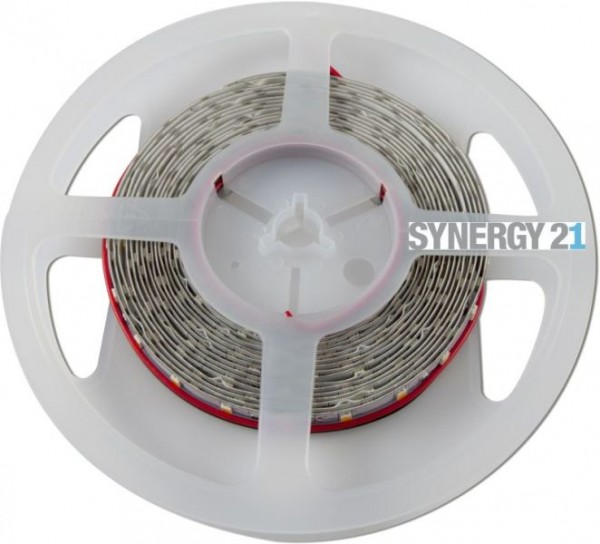

Synergy 21 LED flex strip 60 KW DC24V 96W IP20
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 175265
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00208
- weight: 0.15kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
LED Flex Strip cold white, PCB white
DC24V, max. 4.13A, 96W ± 10%,
300Leds, 120°, 5730SMD,... more
Product information "Synergy 21 LED flex strip 60 KW DC24V 96W IP20"
LED Flex Strip cold white, PCB white
DC24V, max. 4.13A, 96W ± 10%,
300Leds, 120°, 5730SMD,
can be shortened every 6 LEDs
Length: 5000*10*2mm,
Lumen: 8650, 1730lm/m
Kelvin: 6000K ±250
Protection class: IP20, indoor
Adhesive tape for mounting aid on the back
Energy efficiency class: A
kWh/1000h: 105.6
Please note that LED strips also need to be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 4 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 100 |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6000 |
| Lumen: | 8650 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 96 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 105,6 |
| Lumen: | 8650 |
| Watt: | 96,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
