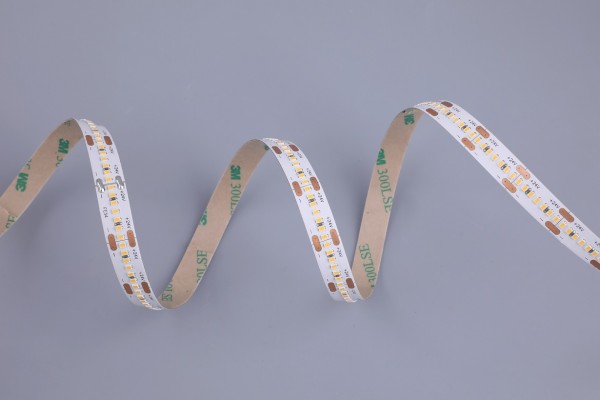

Synergy 21 LED Flex Strip 140 WW DC24V 72W IP67 CRI>90
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 209816
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-B220010
- EAN No.: 4038816125330
- weight: 0.5kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
LED Flex Strip warm white, white PCB
Length: 5m
Voltage: 24V
Watt: 14.4W/m, 72W
93LM/W... more
Product information "Synergy 21 LED Flex Strip 140 WW DC24V 72W IP67 CRI>90"
LED Flex Strip warm white, white PCB
Length: 5m
Voltage: 24V
Watt: 14.4W/m, 72W
93LM/W
Light colour: warm white, 3000K, CRI>90 (R9>60)
Beam angle: 120°
Protection class: IP67
Number of LEDs: 140/m, total: 700LEDs
Dimensions: 5000*10*4mm
Operating temperature: -10°C to +40°C
Can be shortened every 7LEDs 50mm
Adhesive tape: yes 3M on the back
Energy efficiency class: F
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Chip Anzahl: | 140 |
| LED Strip Chip Typ: | 2835 |
| LED Strip Höhe: | 4 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 6696 |
| Volt: | 24 |
| Watt: | 72 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 72.00 |
| Lumen: | 6696.00 |
| Watt: | 72.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
