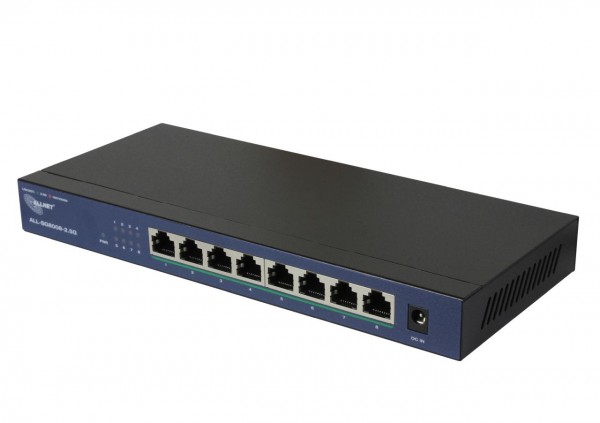

ALLNET Switch unmanaged 8 Port 2.5GBit - 8x LAN - Fanless - "ALL-SG8008-2.5G"
Highlights:
- 8x multi-gigabit ports support up to 2.5 Gigabit 4X speed (10M/100M/1G/2.5G).
- Increase network speed to 2.5x without additional cabling costs.
- Plug-and-play, no complex installation.
- Fanless design ensures absolutely silent operation.
- Flexible mounting options for placing the 2.5G switch in your environment
- Supports IEEE802.1x flow control
- Supports Jumbo Frame: 12K bytes
- Wall mounting possible
Upgrade your existing network infrastructure CAT5A from current 1GB to max. 2.5GB network without replacing your network cables. The 2.5 Gigabit Switch ALL-SG8008-2.5G is the perfect candidate if you want to expand the speed and performance of your network. It is up to 2.5 times faster than today's Gigabit networks. As an out-of-the-box network speed upgrade, the ALL-SG8008-2.5G is an optimal solution for home or small office users who need more bandwidth for their network, such as online gaming, multimedia streaming services, or faster wireless network connections, without the need for complex configuration.
Mechanical Details:
Technical Details:
|
Items |
Specifications |
|
Model No. |
ALL-SG8008-2.5G |
|
Key Components |
1. RTL9303+RTL8226Bx8
|
|
I/O ports |
8 x 2.5G RJ45 Ethernet port |
|
LED Define |
PWR: Green LED
Link/ACT:
|
|
HW feature |
IEEE802.3u100BASE-TX |
|
Power Input |
External power supply Input: 90~264VAC/47~63Hz Output: 12V/1.5A |
|
Dimension |
270(W) x 146(D) x 32(H) mm |
|
FAN Design |
Fan-less |
|
Temperature |
Operating: 0 ~ 40°C Storage : -40 ~ 70°C |
|
Humidity |
Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) |
Produktmerkmale:
| Anzahl Ports PoE/LAN: | 0/8 |
| Belüftung Switch: | Lüfterlos |
| Einsatzort Switch: | Desktop |
| LAN Geschwindigkeit: | 2,5GBit/s |
| Management: | unmanaged |
