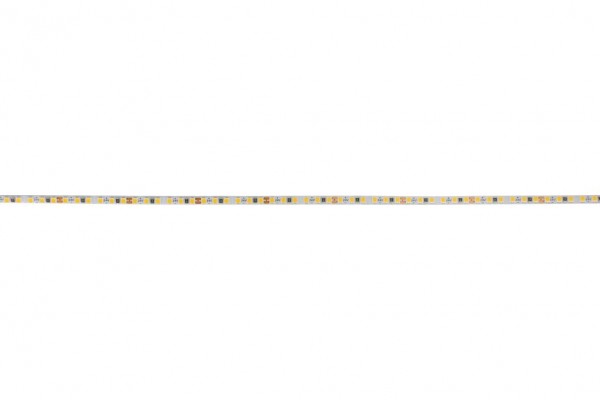

Synergy 21 LED Flex Strip 2022 - 240 SWW DC24V 48W SLIM IP20
- stock: 0
- part no.: 236246
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F02400241
- EAN No.: 4038816139214
- weight: 0.075kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip series with 2022 chip
SLIM = narrow PCB, 3 mm
Voltage: 24V,
Wattage: 9.6W/m, 48W total
Light colour: super warm white, 2700K, CRI>90
Brightness: 90 lm/W, 864 lm/m, total: 4320 lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 240 LEDs/m, total: 1,200 LEDs
LED type: 2022
Cut-to-size: 25 mm
LED strip dimensions: 5000 × 3 × 2 mm
Operating temperature: -25°C to +40°C
Adhesive tape: yes, 3M on the reverse side
Please ensure that the LED strip does not exceed an operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | ja |
| Grösse: | 5000*3*2 |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 3 |
| LED Strip Chip Anzahl: | 240 |
| LED Strip Chip Merkmal: | SLIM |
| LED Strip Chip Typ: | 2022 |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 25 |
| Lichtfarbe: | super warmweiß |
| Lichtfarbe in Kelvin: | 2700 |
| Lumen: | 4320 |
| Produktname: | Serie 2022 - 240 SLIM |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 48 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 48 |
| Lumen: | 4320 |
| Watt: | 48 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
