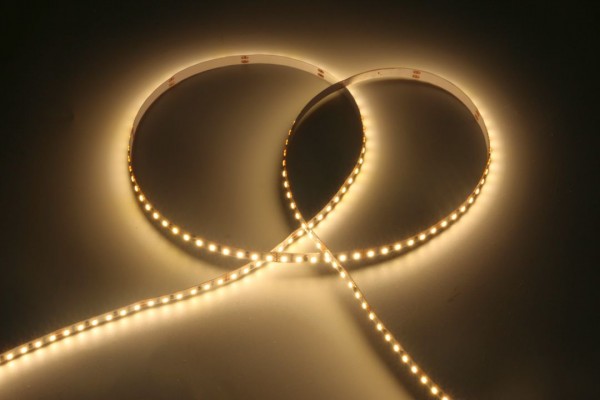

Synergy 21 LED flex strip 180 WW DC24V 64W IP67 CRI>90 2216
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 209818
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-B220012
- EAN No.: 4038816125354
- weight: 0.5kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip 2216 Series
Voltage: 24V,
Watt: 12,8W/m 64W
Light colour: warm... more
Product information "Synergy 21 LED flex strip 180 WW DC24V 64W IP67 CRI>90 2216"
Synergy 21 LED Flex Strip 2216 Series
Voltage: 24V,
Watt: 12,8W/m 64W
Light colour: warm white, 3000K, CRI>90
Brightness: ww: 570lm/m
Beam angle: 120°
Protection class: IP67
Number of LEDs: 180*2216SMD/m, total: 900LEDs
Dimensions: 5000*12*4 mm
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 12 |
| LED Strip Chip Anzahl: | 180 |
| LED Strip Chip Typ: | 2216 |
| LED Strip Höhe: | 4 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 33,33 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 2850 |
| Schutzklasse: | IP67 |
| Volt: | 24 |
| Watt: | 64 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 36.00 |
| Lumen: | 3250.00 |
| Watt: | 36.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
