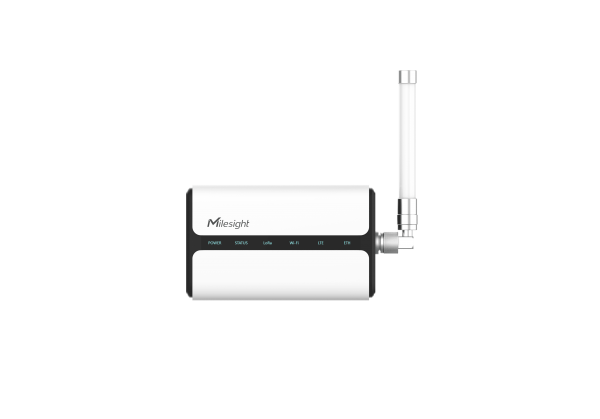

Milesight IoT LoRaWAN Gateway UG65 Cellular (internal Antennas)

Preview: Milesight IoT LoRaWAN Gateway UG65 Cellular (internal Antennas)

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 195753
vendor: Milesight IoT
mnufacturer no.: UG65-L04EU-868M
EAN No.: 6974225032754
weight: 0.5kg
warranty: 24 months
Do you have any questions concerning this product?

The Next Generation of Semi-Industrial LoRaWAN Gateway Highlights: IP65 Rating Gehäuse... more

Close menu

Product information "Milesight IoT LoRaWAN Gateway UG65 Cellular (internal Antennas)"

The Next Generation of Semi-Industrial LoRaWAN Gateway

Highlights:

IP65 Rating Gehäuse
NXP Quad-Core Processor
Semtech SX1302 LoRa Chip
Wi-Fi
PoE
1 * 10/100/1000Mbps
(1 * WAN)
Built-in Network Server
Nicht geeignet für das Helium-Netz! Der Heliumminer kann vorbestellt werden. Artikelnummer 207192. Verfügbar in 2022

Technical Details:

Model	UG65 868MHz (internal Antennas) Cellular
Hardware System
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	512 MB DDR4 RAM
Flash	8 GB eMMC
LoRaWAN®
Antenna	Fully Integrated Internal Antenna
Channel	8
Frequency Band	EU868
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Ethernet Interface
Port	1 × RJ45 (PoE PD support)
Physical Layer	10/100/1000 Base-T (IEEE 802.3)
Data Rate	Rate 10/100/1000 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi
Antenna	Fully Integrated and Internal Antenna
Standards	IEEE 802.11 b/g/n
Tx Power	802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface
Antenna	Fully Integrated and Internal Antenna
SIM Slot	1
Software
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication	CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management	Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability	WAN Failover
Power Supply and Consumption
Power Supply	1. DC Jack Connector for 9-24 VDC power supply 2. 1 × 802.3 af PoE input
Consumption	≤ 4.2W
Physical Characteristics
Ingress Protection	Protection IP65
Dimensions	180 x 110 x 56.5 mm
Mounting	Desktop, Wall or Pole Mounting
Others
Reset Button	1 × RST
Console Port	1 × Type-C Port
LED Indicators	1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Built-in	Watchdog, RTC, Timer
Certification	CE, FCC
Environmental
Operating Temperature	-40°C to +70°C Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C
