ALLNET Switch full managed Layer2+ 28 Port • 24x GbE • 4x SFP+ • 19" • JSON API • ALL-SG8628MJ-10G

Highlights:

• 24 ports Gigabit Layer2+ switch architecture (ports 1~24).
• 4 ports SFP+ 10G slots for optional GBICSs compatible (ports 25~28)
• Supports SFP DDM & cable diagnostics
• Supports G.8032 ERPS, self-detection time < 20 ms
• Supports 1588 V2.0, transparent clock
• Supports port aggregation
• 4KV &overvoltage protection, 6KV contact/8KV air ESD protection
• 19"-angle or wall/table mounting possible
• NEW: LAN JSON-Java-Script-Notation API for ON/OFF via remote

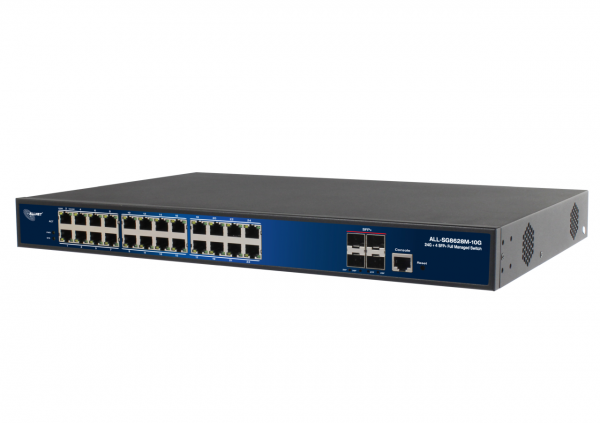

ALL-SG8628MJ-10G has 24*10/100/1000Base-T RJ45 ports and 4*10G Base-X SFP fibre slot ports with Layer 2 management. Supports desktop and 1U/19-inch rack installation.

10Gbps uplink capacity for high bandwidth applications
10G Ethernet is a major leap forward in the development of Ethernet. The 10G SFP+ sockets support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, which means that the administrator can now flexibly select the appropriate SFP/SFP+ transceiver according to the transmission distance or speed to efficiently expand the network. It is a cost-effective solution for SME networks to achieve the maximum performance of 10G networks.

Solution for IPv6 networks

With the IPv6/IPv4 dual stack and other management features, the ALL-SG8628MJ-10G is the best choice for IP CCTV, VoIP and wireless solution providers to develop IPv6 networks. At the same time, they help SMEs to migrate their network infrastructures to the IPv6 era without additional investment.

Robust Layer 2 functions
The ALL-SG8628MJ-10G can be programmed for advanced switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS, IGMP/MLD snooping, etc. The ALL-SG8628MJ-10G enables the operation of a high-speed trunk that combines multiple ports.

Powerful security features
The ALL-SG8628MJ-10G provides a comprehensive access control list (ACL) to enforce security at the network edge. It can be used to restrict network access by denying packets based on source and destination IP addresses, TCP/UDP port numbers or defined typical network applications. The protection mechanism also includes 802.1x port-based and MAC-based user and device authentication. The private VLAN function can be used to prevent communication between edge ports in order to protect user privacy.

Improved security and traffic control
The ALL-SG8628MJ-10G supports the DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to protect IP snooping from attacks and to discard ARP packets with invalid MAC addresses. The network administrator can now set up highly secure company networks with significantly less time and effort than before.

User-friendly, secure management
For efficient management, the ALL-SG8628MJ-10G managed switch series is equipped with console, web and SNMP management interfaces. With the management interface, the ALL-SG8628MJ-10G provides a user-friendly, platform-independent management and configuration option. The ALL-SG8628MJ-10G supports SNMP and can be managed via any management software based on the standard SNMP v1 or v2 protocol. At the same time, the ALL-SG8628MJ-10G offers Cisco-like commands via Telnet or the console port, so the customer does not have to learn new commands for these switches. In addition, the ALL-SG8628MJ-10G provides secure remote management by supporting SSH, SSL and SNMP v3 connections, where packet contents can be encrypted at each session.

Intelligent SFP DDM function
The ALL-SG8628MJ-10G supports the SFP-DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.

Redundant ring with fast recovery for critical network applications

The ALL-SG8628MJ-10G supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system into the customer’s industrial automation network to improve system reliability and uptime in harsh factory environments. In a given simple ring network, the data link recovery time can be as fast as 20 ms.

1588 time protocol for industrial computer networks

The ALL-SG8628MJ-10G is ideal for telecommunications and carrier Ethernet applications and supports MEF service provisioning and timing-over-packet solutions for IEEE 1588 and synchronous Ether

JSON-Java Script Object Notation API

With the JSON API, the ADMIN can create a special user and grant this user authorisation for JSON. We have focussed on 2 functions that we consider important.

• PoE ON/OFF & LAN Port Enabled/Disabled (for switches with PoE function)
• LAN Port Enabled/Disabled (for switches without PoE)
