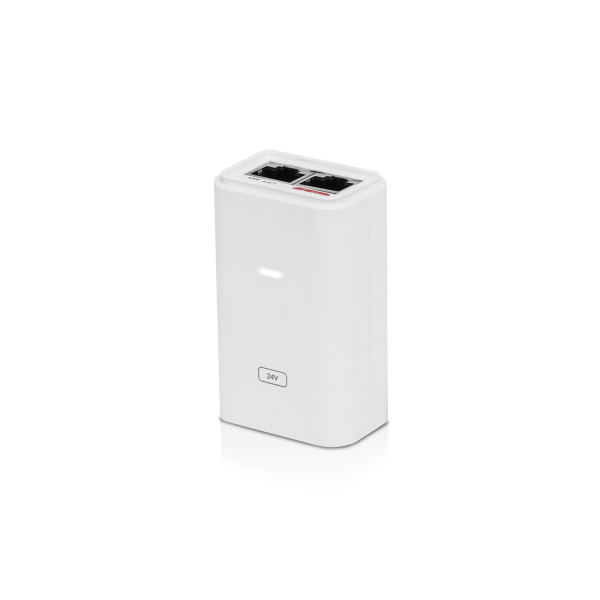

Ubiquiti POE Injector , 24V , 7W , Gigabit Port

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 153143
vendor: Ubiquiti
mnufacturer no.: POE-24-7W
weight: 0.3kg
warranty: 12 months
Do you have any questions concerning this product?

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE... more

Close menu

Product information "Ubiquiti POE Injector , 24V , 7W , Gigabit Port"

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.

Surge and clamping protection

Maximum surge discharge

Peak pulse current

AC cable with earth ground

Technical Specifications

POE-24-7W-G-WH (Low-Power)
Dimensions	72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight	72.1g (2.54 oz)
Output Voltage	24VDC @ 0.3A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @240VAC
Inrush Current	<40A Peak @ 120VAC, <70A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	–
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-30 to 70°C (-22 to 158°F)
Operating Humidity	35 to 95% Non-Condensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pf data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
POE-24-12W-G (Mid-Power)
Dimensions	87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight	99.4 g (3.51 oz)
Output Voltage	24VDC @ 0.5A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current	<30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency	75+%
Output Ripple	1% Max.
Switching Frequency	50 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	-
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
POE-24-24W-G (Hi-Power)
Dimensions	88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight	158.5 g (5.59 oz)
Output Voltage	24VDC @ 1.0A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current	<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	-
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
