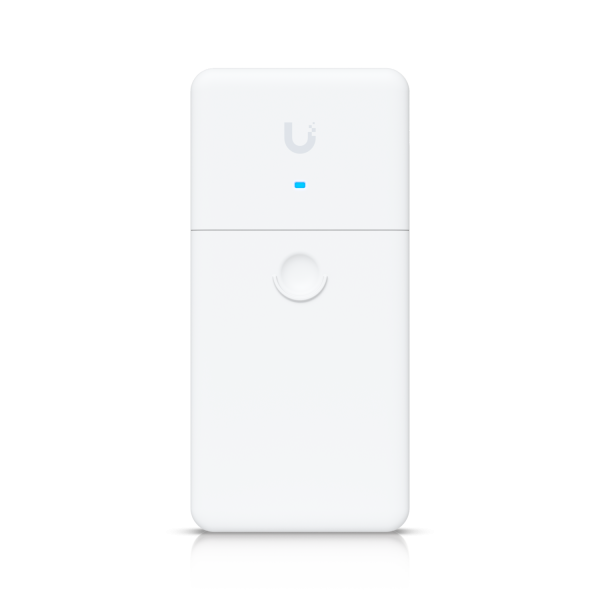

Ubiquiti UACC-LRE Longe Range Ethernet Repeater
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 211899
- vendor: Ubiquiti
- mnufacturer no.: UACC-LRE
- EAN No.: 810010078780
- weight: 0.35kg
- warranty: 12 months
- Do you have any questions concerning this product?
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.... more
Product information "Ubiquiti UACC-LRE Longe Range Ethernet Repeater"
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*
(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
*Repeaters must be placed in 100 m increments.
**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5") |
Weight | 350 g (12.3 oz) |
Enclosure material | UV stabilized polycarbonate |
Mounting material | Stainless steel |
Weatherproofing | IPX5 |
Hardware | |
Networking interface | (2) GbE RJ45 ports |
PoE interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
Power method | PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)* *May not be supported by certain third-party switches. We recommend using a UniFi switch to power the device. |
Max. power consumption (excluding PoE out) | 1.5W |
Voltage range | 37—57V DC |
ESD/EMP protection | Air/contact: ± 30kV |
DC sparkover voltage | 90V at 100V/s |
Max. impulse sparkover voltage | 700V at 1kV/μs |
Discharge current | 10kA+ |
Max. MTU | 1,500 bytes |
Modes | Long-range indoor Outdoor ethernet repeater |
Operating temperature | -40 to 80° C (-40 to 176° F) |
Operating humidity | 10 to 95% non-condensing |
Certifications | CE, FCC, IC |
LEDs | |
System | Blue: power ON |
Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
PoE | Amber: passthrough PoE out |
