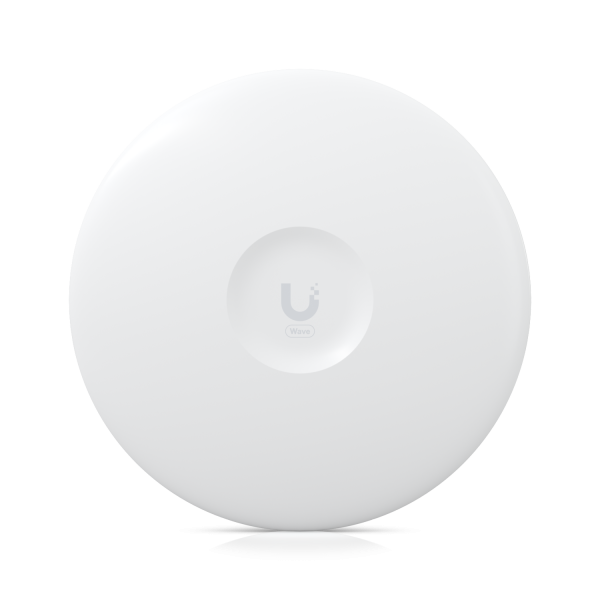

Ubiquiti Wave-Pro 60 GHz PtMP & PtP station

Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
Ubiquiti Wave-Pro 60 GHz PtMP & PtP station
product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.... more
Product information "Ubiquiti Wave-Pro 60 GHz PtMP & PtP station"

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

Compatibility and supported distances:
— PtP: Up to 15 km
— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput

5 GHz 800+ Mbps weather-resistant backup radio

(2) 2.5 GbE and (1) 10G SFP+ ports

Ergonomic transportation handle

Precision alignment mount

Integrated GPS & Bluetooth

Technical Specifications

Mechanical
Dimensions Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
Weight Without mount: 2.8 kg (6.2 lb)
With mount: 4 kg (8.8 lb)
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount material Stainless steel
Pole mount diameter 25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading 369 N at 200 km/h (83 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L 512 MB
Networking interface (2) 2.5 GbE RJ45 ports
(1) 10G SFP+ port
Max. power consumption 26W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A, 2.5 GbE PoE adapter (included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, (2) Ethernet, SFP+ , GPS, link
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtP, PtMP station
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge/Router* mode
*Router is available in PtMP station mode only.
Application requirements UISP: Version 2.3.0 and later
System
Total throughput 5.4 Gbps (2.7 Gbps duplex)
Max. range PtP: Up to 15 km
PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57 to 71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 46 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.3°
Elevation: 3 dB 1.3°
Back-Up RF
WiFi Standard 802.11ax (WiFi 6)
Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Max. conducted TX power 27 dBm
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 22 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 8°
Elevation: 3 dB 8°
Cross-pol isolation 20 dB
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet (2) Flashing blue: Ethernet traffic detected
SFP+ (1) Flashing blue: SFP+ traffic detected
Links White: 5 GHz link
Blue: 60 GHz link
GPS Blue: receiving at least (4) GPS satellite signal
