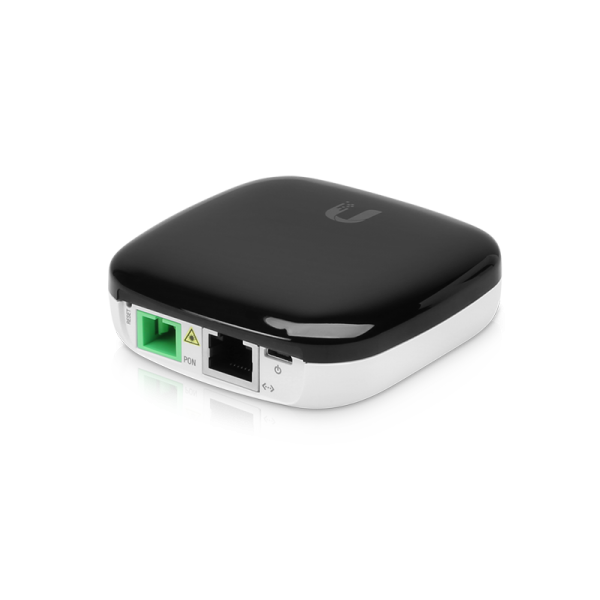

Ubiquiti Fiber UF-LOCO-5
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 155360
- vendor: Ubiquiti
- mnufacturer no.: UF-LOCO-5
- EAN No.: 817882023566
- weight: 0.9kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
GPON customer-premises equipment (CPE) that pairs high performance with extremely low power... more
Product information "Ubiquiti Fiber UF-LOCO-5"
GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.
(1) GPON port
(1) GbE RJ45 LAN port and 24V PoE in
Note. This device is designed to be used with the UFiber OLT. Third-party OLTs may not be compatible or are unable to reliably connect to the ONU.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") |
| Weight | 77 g (2.72 oz) |
| Hardware | |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984: 2.488 Gbps Downstream / 1.244 Gbps Upstream (1) GbE LAN: 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm |
| Power Method | Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8) |
| Power Supply | Micro-USB Power Adapter*: 5V, 1A *Included only in the single-pack of the UF-LOCO |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 4.7 to 5.3V |
| Processor Specs | MIPS-32, 240 MHz |
| Memory Information | 128 MB DDR3 |
| Button | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
