Ubiquiti U Fiber, 8-port GPON OLT

Ubiquiti U Fiber, 8-port GPON OLT
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us
Due to the holiday "1. Weihnachtstag" your order will not be dispatched until the next working day.
Description Accessories 2
Description
Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up... more
Close menu
Product information "Ubiquiti U Fiber, 8-port GPON OLT"

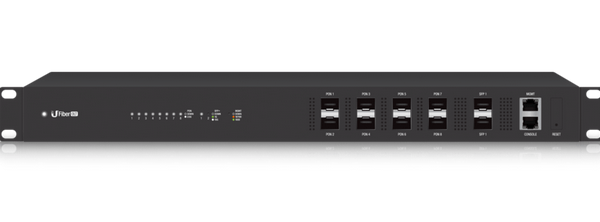

Eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port).

GPON. 2.488 Gbps down / 1.244 Gbps stream capacity

1024 Client capacity (8 ports)

(2) 10G SFP+ uplink ports

1U Rack mount

Power redundancy support

Technical Specifications

Mechanical
Dimensions 442.4 x 285.6 x 43.7 mm(17.42 x 11.24 x 1.72")
Weight Without Mount Brackets: 4.4 kg (9.70 lb)
With Mount Brackets: 4.5 kg (9.91 lb)
Hardware
Processor MIPS 1004Kc 880 MHz Dual-Core
Data Ports Interfaces (8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port)
(2) 1G/10G SFP+ Ports
Serial Console Port Interfaces (1) RJ45 Ethernet Port
(1) RJ45 Serial Port
Max. Power Consumption 40W (Excluding SFP Transceivers)
Power Method 110 - 240VAC Modular PSU
Power Supply (1) Hot-Swappable AC/DC 100W PSU (Included)
Supported Voltage Range AC Input: 100 to 240VAC
Button Reset
System Memory 512 MB DDR3, 512 MB NAND
LEDs
System
PON Data Ports
SFP+ Data Ports
RJ45 (MGMT) Port
Status
Link/Activity
Link/ActivityLink/Activity
Link/Activity
GPON SFP OLT Transceiver
(UF-GP-B+ )		 Single Fiber, SM SC/UPC, 20 km,
1490 nm TX/1310 nm RX,
ITU-T G984.2 Class B+
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
