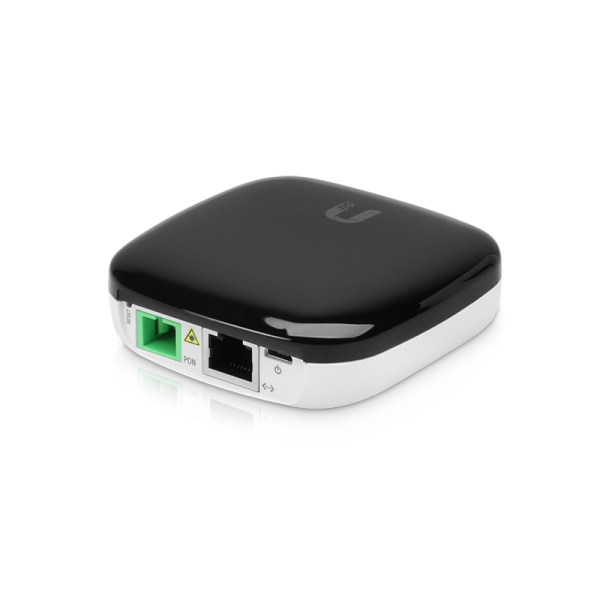

Ubiquiti Fiber UF-LOCO-20

product pictures similar, may differ from the product description!

This product is not available at the moment. Delivery time upon request.

GPON customer-premises equipment (CPE) that pairs high performance with extremely low power... more

Product information "Ubiquiti Fiber UF-LOCO-20"

GPON customer-premises equipment (CPE) that pairs high performance with extremely low power consumption.

(1) GPON port

(1) GbE RJ45 LAN port and 24V PoE in

_{Note. This device is designed to be used with the UFiber OLT. Third-party OLTs may not be compatible or are unable to reliably connect to the ONU.}

Technical Specifications

Mechanical
Dimensions	76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")
Weight	77 g (2.72 oz)
Hardware
Networking Interfaces	(1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds	(1) GPON WAN, ITU G.984: 2.488 Gbps Downstream / 1.244 Gbps Upstream (1) GbE LAN: 10/100/1000 Mbps
Management Interface	In-Band Ethernet PON
Normal Optical Power Range	TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
Power Method	Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply	Micro-USB Power Adapter: 5V, 1A Included only in the single-pack of the UF-LOCO
Max. Power Consumption	3.5W
Supported Voltage Range	4.7 to 5.3V
Processor Specs	MIPS-32, 240 MHz
Memory Information	128 MB DDR3
Button	(1) Reset
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
