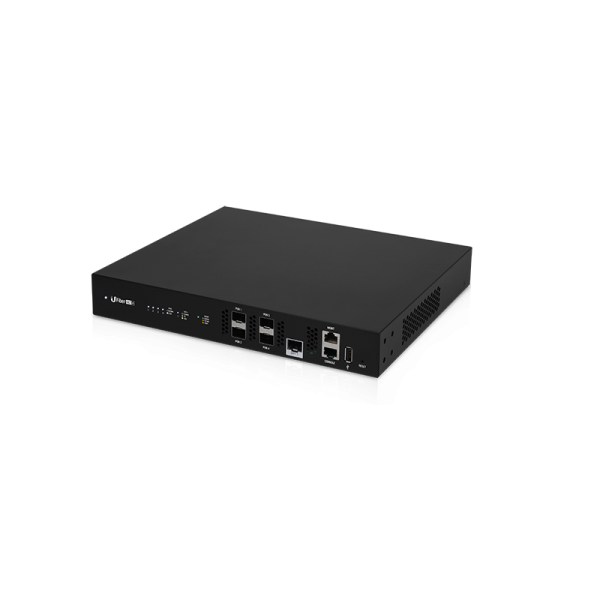

Ubiquiti U Fiber , UF-OLT-4
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 153140
- vendor: Ubiquiti
- mnufacturer no.: UF-OLT-4
- EAN No.: 817882023726
- weight: 3.057kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Four-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to... more
Product information "Ubiquiti U Fiber , UF-OLT-4"
Four-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 512 clients (128 per port).
GPON. 2.488 Gbps down / 1.244 Gbps stream capacity
512 Client capacity (4 ports)
(1) 10G SFP+ uplink ports
1U Rack mount
Power redundancy support
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 299.8 x 258.95 x 42.55 mm |
| Weight | 1930g (without hangers) 2130g (with hangers) |
| Enclosure Characteristics | SGCC steel |
| Hardware | |
| Processor | MIPS 1004Kc 880 Mhz Dual-core |
| Memory | 512 Mbyte DDR3, 512M Byte NAND |
| Management Interface | (1) Ethernet out-of-band management (1) Ethernet in-band management (1) RJ45 Serial Console Port |
| Networking Interface | (4) GPON OLT SFP (1) 10 Gbps SFP+ |
| Buttons | (1) Reset |
| LEDs/Display | (1) Power: Blue/White Blinking Blue: reset to default Steady Blue: system is booting Steady White: service is ready (4) GPON OLT SFP Steady/Blinking white : GPON link/activity (1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity (1) Ethernet RJ45 Out-of-band Management: Green(1G), steady on after link is up, blinking while activity |
| Power Method | 100-240VAC/50-60 Hz universal input / 25VDC |
| Power Supply | AC/DC internal 56W DC / DC barrel jack connector |
| Supported Voltage Range | AC input: 100 to 240 VAC / 25 to 16VDC |
| Max. Power Consumption | 35W (Excluding SFP modules) |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 10% to 90% Non-Condensing |
| Software | |
| Mode | OLT 2/3 Ethernet Switch and GPON Core |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent Clients | 512 ONUs/ONTs registered |
| Minimum Software Requirements | Any Modern Web Browser |
