Ubiquiti U Fiber, Nano, GPON CPE
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 144483
- vendor: Ubiquiti
- mnufacturer no.: UF-Nano
- EAN No.: 810354025761
- weight: 0.495kg
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.... more
Product information "Ubiquiti U Fiber, Nano, GPON CPE"

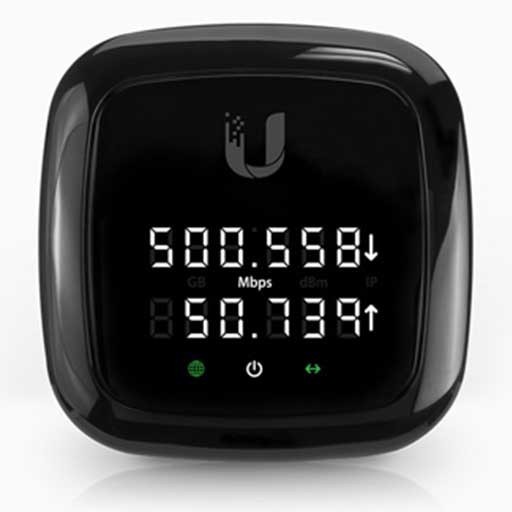

GPON customer-premises equipment (CPE) with an LED display for convenient device monitoring.
(1) GPON port
(1) GbE RJ45 LAN port and 24V PoE in
(1) Digital display
Dying gasp support
Note. This device is designed to be used with the UFiber OLT. Third-party OLTs may not be compatible or are unable to reliably connect to the ONU.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 77 x 77 x 28 mm (3.03 x 3.03 x 1.1") |
| Weight | 110 g (3.88 oz) |
| Hardware | |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: -8 to -28 dBm |
| Power Method | 24V Passive PoE (Pins 4, 5+; 7, 8-) Dying Gasp Support |
| Power Supply | PoE Adapter: 24V, 0.3A |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 20 to 28V |
| Processor Specs | MIPS-32, 240 MHz |
| Memory Information | 128 MB DDR3 |
| Buttons | (1) Display Information (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
