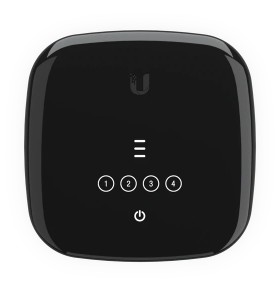

Ubiquiti UFiber GPON UF-WIFI6 GPON CPE
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 210520
- vendor: Ubiquiti
- mnufacturer no.: UF-WiFi6
- EAN No.: 810010078384
- weight: 0.415kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
GPON customer-premises equipment (CPE) with WiFi6 support.
(1) GPON port
Integrated... more
Product information "Ubiquiti UFiber GPON UF-WIFI6 GPON CPE"
GPON customer-premises equipment (CPE) with WiFi6 support.
(1) GPON port
Integrated 4-port GbE switch
Integrated WiFi 6
Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25") |
| Weight | 415 g (0.99 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Hardware | |
| Processor | Dual-core MIPS 1004 Kc at 900 MHz |
| Memory | 256 MB RAM |
| Total non-blocking line rate | 2.488 Gbps downstream 1.244 Gbps upstream |
| Networking interfaces | (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels |
| PoE interface | (1) PoE in, 24V passive PoE |
| Management interface | Ethernet in-band PON |
| Button | Factory-reset |
| Max. power consumption | 11W |
| Power method | USB-C 5VDC, 3A 24V passive PoE, 0.5A |
| Power supply | 5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-) |
| Supported voltage range | 10 to 30VDC passive PoE 5VDC adapter |
| Normal TX range of optical module | 0.5 to 5 dBm |
| Normal RX range of optical module | -8 to -28 dBm |
| Max. WiFi TX power 2.4 Ghz 5 Ghz |
20 dBm 20 dBm |
| MIMO 2.4 Ghz 5 Ghz |
2 x 2 2 x 2 |
| Max. WiFi radio rate 2.4 Ghz 5 Ghz |
300 Mbps 1.2 Gbps |
| Antenna Gain 2.4 GHz 5 GHz |
1 dBi 3 dBi |
| Operating temperature | -15 to 45° C (5 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | |
| PON status | (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (>= -28 db) 2x white: signal good (>= -25 db) 3x white: signal strong (>= -11 db) 1x orange + 2x white: signal too strong (>= -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| Power | White: ON |
| Software | |
| Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti specific features | UISP Mobile App |
| WiFi standards | 802.11 b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| Fiber | |
| Operating wavelength | 1310 nm TX/1490 nm RX |
| Optical interface downstream nominal bit rate | 2488.32 Mbit/s |
| Optical interface upstream nominal bit rate | 1244.16 Mbit/s |
| Physical reach | 20 km |
| Supported Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (WiFi 6) | 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
