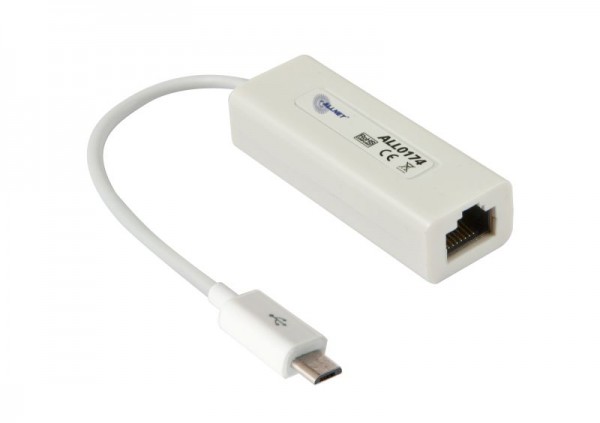

ALLNET ALL0174 / USB -> USB Fast Ethernet Micro-USB LAN Adap
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 107812
- vendor: ALLNET
- mnufacturer no.: ALL0174
- EAN No.: 4038816016867
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Micro USB 2.0 Fast-Ethernet 10/100MBPS LAN adapter
HIGHLIGHTS
• ASIX AX88772B Chipset
• Micro-USB 2.0 connector, down compatible with USB1.0 / 1.1
• 10/100Mbps FAST-Ethernet
• Automatic crossover detection and correction supported
• compatible with Hot-Spot/Printer oder Android Tablets etc.
The ALL0174 Low-power USB 2.0 to 10/100M Fast Ethernet controller is a high performance and highly integrated ASIC which enables a low cost, small form factor, and simple plug-and-play Fast Ethernet network connection capability for desktops, notebook PC’s, Ultra-Mobile PC’s, docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port.
The ALL0174 Adapter with AX88772B Chipset features a USB interface to communicate with a USB Host Controller and is compliant with USB specification V1.1 and V2.0. The ALL0174 implements 10/100Mbps Ethernet LAN function based on IEEE802.3 and IEEE802.3u standards with embedded SRAM for packet buffering. The ALL0174 integrates an on-chip 10/100Mbps Ethernet PHY to simplify system design.
Technical Details:
Element | Spezifikation |
Chipset: | Asix AX88772B |
Supported Standards: | IEEE802.3 IEEE802.3ab IEEE802.3u IEEE802.3x |
USB connector: | Micro-USB 2.0 down compatible with USB 1.0 / USB 1.1 |
Netzwork Connector: | TP RJ45 |
LED: | Red: working mode |
Housing: | Plastik Housing |
Dimmension/weight: | 20 x 55 x 15 mm cable length: ca. 10cm |
Environment: | Operationg Temp: 0 ~ 50 °C |
Mark: | CE |
Package content: | 1x ALL0174 Micro-USB LAN Adapter |
Downloads
Software | |||
 |
Software 08.02.2015 |
ALL0174 Treiber für WinXP/WinVista/Win7/Win8x/Linux/MacOS |
 |
