Items

Specifications

Model No.

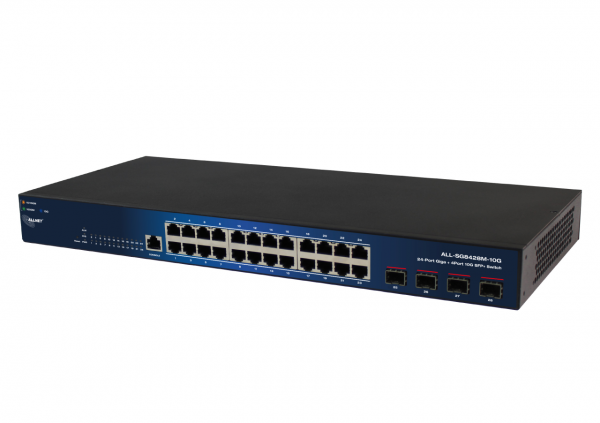

ALL-SG8428M-10G

Key Components

1. RTL9301M+RTL8218Dx3
2. Flash IC: MXIC 16M Byte
3. DDR: 1G bits

I/O ports

24x GbE ports, RJ45

4 x 10G ports, SFP+

Reset button: reset to default setting, re-start system

Console port by RJ45 type

LED Define

PWR: Green LED

• Off: power off or fail
• On: power on

SYS: Green LED

• Off: power off or fail
• On: system is ready
• Blinking: system booting up

Alert: Red LED

• Off: Switch is normal condition
• On: Alarm for system failure because of overheat, wrong voltage.

1-24 port LED:

Link/ACT:

• Off: port disconnected or link fail
• Green on: 1000Mbps connected
• Amber on: 10/100Mbps connected
• Blinking: sending or receiving data

25-28 port LED:

  SFP+:

          - Off: disconnected or fail

          - Blue: 10Gbps connected

          - Green: 1000Mbps connected

          - Blinking: data transmitting

HW feature

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3ae SFP+

IEEE802.3az EEE

MAC address table: 16K

Packet buffer size: 12Mbit

Jumbo Frame: 12K bytes

128Gbps switching capacity

Forwarding rate: 95.2Mpps (64-byte package size)

Data transfer rate

Ethernet:10 Mbps(half duplex),20 Mbps(full duplex)

Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex)

Giga Ethernet:2000 Mbps(full duplex)

10 Gigabit Ethernet:20 Gbps(full duplex)

System Monitor

HW Monitor IC: ADT7463

1. Voltage monitor
   1. Input Voltage : 12V (+/-7% Alarm Threshold)
   2. I/O Voltage : 3.3V (+/- 5% Alarm Threshold)
   3. DDR Voltage : 1.5V (+/- 5% Alarm Threshold)
   4. PHY Voltage : 1.1V (+/- 5% Alarm Threshold)
   5. MAC Voltage:1.0V (+/- 5% Alarm Threshold)
2. Temperature Monitor
   1. BOARD: 0~80°C
   2. MAC: 0~85°C
   3. PHY: 0~85°C

Power Input

Internal power supply

Input: 90~264VAC/47~63Hz

Output: 12V/3A

Reset button

Support reset to default configuration

Dimension

441(W) x 196(D) x 44(H) mm

FAN design

Fan-less

Temperature

Operating: 0 ~ 40°C

Storage : -40 ~ 70°C

Humidity

Operating: 10% ~ 90% RH (non-condensing)

Storage : 5% ~ 90% RH (non-condensing)

Status

System information

Logging message

Port

Statistics

Error Disabled

Bandwidth Utilisation

Link aggregation

MAC Address Table

8K

Network

IP Address

Static / Dynamic

System Time

SNTP / From Computer / Manual Time

Port

Port setting

State / Speed / Duplex / Flow Control

Error Disabled

Recovery Interval

ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood

Link aggregation

Group

Port Setting

State / Speed / Flow Control

LACP

EEE

Jumbo Frame

1518 – 10000 bytes

PoE

Global Setting

Schedule Status

Priority Setting

Power Limit

Power Show

VLAN

VLAN

Create VLAN

VLAN Configuration

Membership

Port Setting

Voice VLAN

Property

Voice OUI

Protocol VLAN

Protocol Group

Group Binding

MAC VLAN

MAC Group

Gr-oup Binding

Surveillance VLAN

Property

Surveillance OUI

GVRP

Property

Membership

Statistics

MAC Address Table

Dynamic Address

Aging Time

Static Address

Filtering Address

Spanning Tree

Property

State / Operation Mode / Path Cost / BPDU Handling

Operation Mode : STP/RSTP/MSTP

Port Setting

MST Instance

MST Port Setting

Statistics

Discovery

LLDP

Property

Port Setting

MED Network Policy

MED Port Setting

Packet View

Local Information

Neighbour

Statistics

Multicast

General

Property

Unknown Multicast Action / Multicast Forward Method

Group Address

Router port

Forward All Table

Throttling

Filtering Profile

Filtering Binding

IGMP snooping

Property

State / Version / Report Suppression

Transverse

Statistics

MLD snooping

Property

State / Version / Report Suppression

Statistics

MVR

Property

State / VLAN / Mode / Group Start / Group Count / Query Time

Port Setting

Group Address

Security

RADIUS

TACACS+

AAA

Method List

Login Authentication

Console / Telnet / SSH / HTTP / HTTPS

Management access

Management VLAN

Management Service

Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout

Management ACL

Management ACE

Authentication Manager

Property

Port Setting

Sessions

Port Security

Protected port

Storm Control

State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)

DoS

Property

Port Setting

Dynamic ARP Inspection

Property

Statistics

DHCP snooping

Property

Statistics

Option82 Property

Option82 Circuit ID

IP Source Guard

Port Setting

IMPV Binding

Save Database

ACL

MAC ACL

MAC ACE

IPv4 ACL

IPv4 ACE

IPv6 ACL

IPv6 ACE

ACL Binding

QoS

General

Property

CoS / DSCP / CoS-DSCP / IP Precedence

Queue scheduling

Strict Priority / WRR

CoS mapping

DSCP mapping

IP Precedence Mapping

Rate limit

Ingress / Egress Port

Egress queue

Diagnostics

Logging

Property

Console / RAM / Flash

Remote server

Mirroring

Ping

Tracer route

Copper test

Fibre modules

UDLD

Property

Message Time

Neighbour

Management

User account

Firmware

Upgrade / backup

Action (Upgrade / Backup) / Method (TFTP / HTTP)

Active Image

Active Image  / Backup Image

Configuration

Upgrade / Backup

Action (Upgrade / Backup) / Method (TFTP / HTTP)

Save Configuration

Source File / Destination File, Restore Factory Default

SNMP

View

Group

Community

User

Engine ID

Trap event

Authentication Failure / Link UP_Down / Cold Start / Warm Start

Notification

RMON

Statistics

History

Event

Alarm
