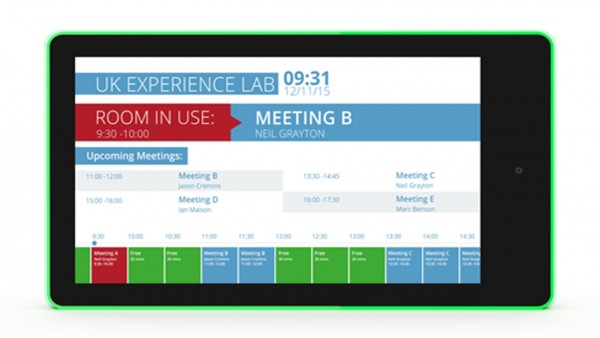

ALLNET Meeting Room LED Tablet 10 Inch RK3288

ALLNET Meeting Room LED Tablet 10 inch RK3288 Android 8/10 and RFID (NXP Mifare, Desfire)

Update to Android 10 possible: write to support@allnet.de

Including power supply and integrated snap-in wall mount with anti-theft protection. RGB LED for displaying e.g. warning signals, occupancy of meeting rooms etc.

Due to the NFC, time recording terminals can also be implemented very well or info terminals with ID, such as multi-party residential complexes.

Currently tested Android time terminal software:

PDS time works, but config file must be imported manually, camera we did not address.
AIDA time works according to manufacturer with our part numbers 174715/174716/174717/174888 u. 182897

The API/SDK for NFC/RFID and LED are available on request.

Specifications NFC: NXP PN7150

PN7150 is a full-featured NFC controller solution with integrated firmware and NCI interface that for contactless communication on 13.56 MHz. It is compatible with the requirements of the NFC Forum.
PN7150 was developed based on lessons learned from previous generations of NXP NFC devices. It is the ideal solution for quickly integrating NFC technology into any application, especially those using O/S environments such as Linux and Android.

- Full NFC forum compliance with small form factor antenna.
- Embedded NFC firmware that provides all NFC protocols as a pre-integrated feature
- Direct connection to main host or microcontroller, through physical I2C bus and NCI
protocol
- Ultra-low power consumption in polling loop mode
- High efficiency integrated power management unit (PMU)

- Supported RF protocols
- NFCIP-1, NFCIP-2 protocol (see [8] and [11])
- ISO/IEC 14443A, ISO/IEC 14443B PICC, NFC Forum T4T modes via host interface (see [3])
- NFC Forum T3T via host interface
- ISO/IEC 14443A, ISO/IEC 14443B PCD designed according to NFC Forum digital protocol T4T platform and ISO-DEP
- FeliCa PCD mode
- MIFARE PCD encryption mechanism (MIFARE Classic 1K/4K)
- NFC Forum tag 1 to 5 (MIFARE Ultralight, Jewel, Open FeliCa tag, MIFARE DESFire) (see [1])
- ISO/IEC 15693/ICODE VCD mode (see [9])

For further information please refer to the NFC data sheet.
